Portable Sharpening Station: Day III

Today was all about the recesses that I needed to create for the sharpening stones and to be honest there was a decent amount of layout work to be done and maybe 20 minutes of me actually using my router. I gone to great detail explaining the how and the why of the steps that I took.

  • Materials Needed

  • Laying out the measurements for the template

  • Drill Press

  • Template Cut-outs

  • Dry run

  • Router time.

  • Recesses all done

MATERIALS NEEDED

I decided to use 1/2” thick MDF (Medium Density Fiberboard) for the template because of a couple of reasons, its very flat and easy to mill. I went to my local Big Box store and purchased a 2’x2’ project panel and cut it down to the size I needed.

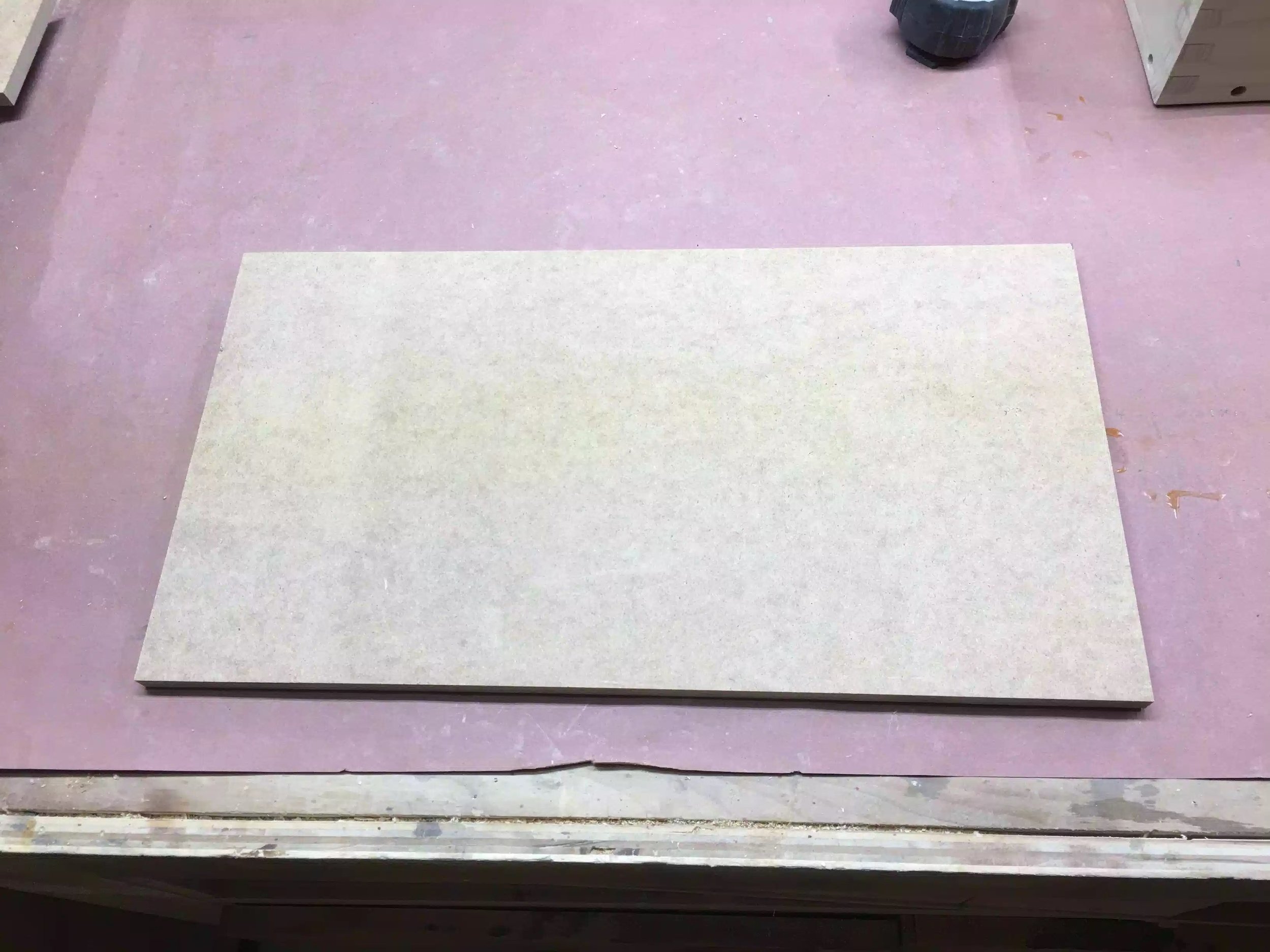

Here is the project panel cut to size, before I made all my layout lines

Here is the project panel cut to size, before I made all my layout lines

MEASUREMENT LAYOUT

The longest part of this whole part of the project was this section, laying out all the lines and determining how much offset I needed in making the template, because if you remeber I am going to be using a router template bushing to guide the router inside the template giving me my final shape.

Here are some of my measurements that I am using for the template, but if you are going to make your own your measurements are probably and most likely going to be different than mine because I am using Diamond sharpening stones that are 8” x 3”. One more thing that I want to make you aware of I decided to make the template the actual size of the entire surface area of the sharpening station as it gave me more room to apply double sided tape to fix it to my tray that I will be applying the recesses into.

  • I maintained a 3/4” wide space around the perimeter of the MDF template as this represented the box beneath

  • Next to that line I came in an additional 1/2” and maintained that spacing between each of the stones and maintained this spacing all the way across the template so as that the spacing between the sides of the sharpening stones were consistent.

  • On the front edge of the template I measured 3/8” in from the first line I drew which was 3/4”.

  • One other reminder because I am a guide template bushing I needed to add 1/4” to the template to account for the offset.

  • Below you can see the measurements on the actual template.

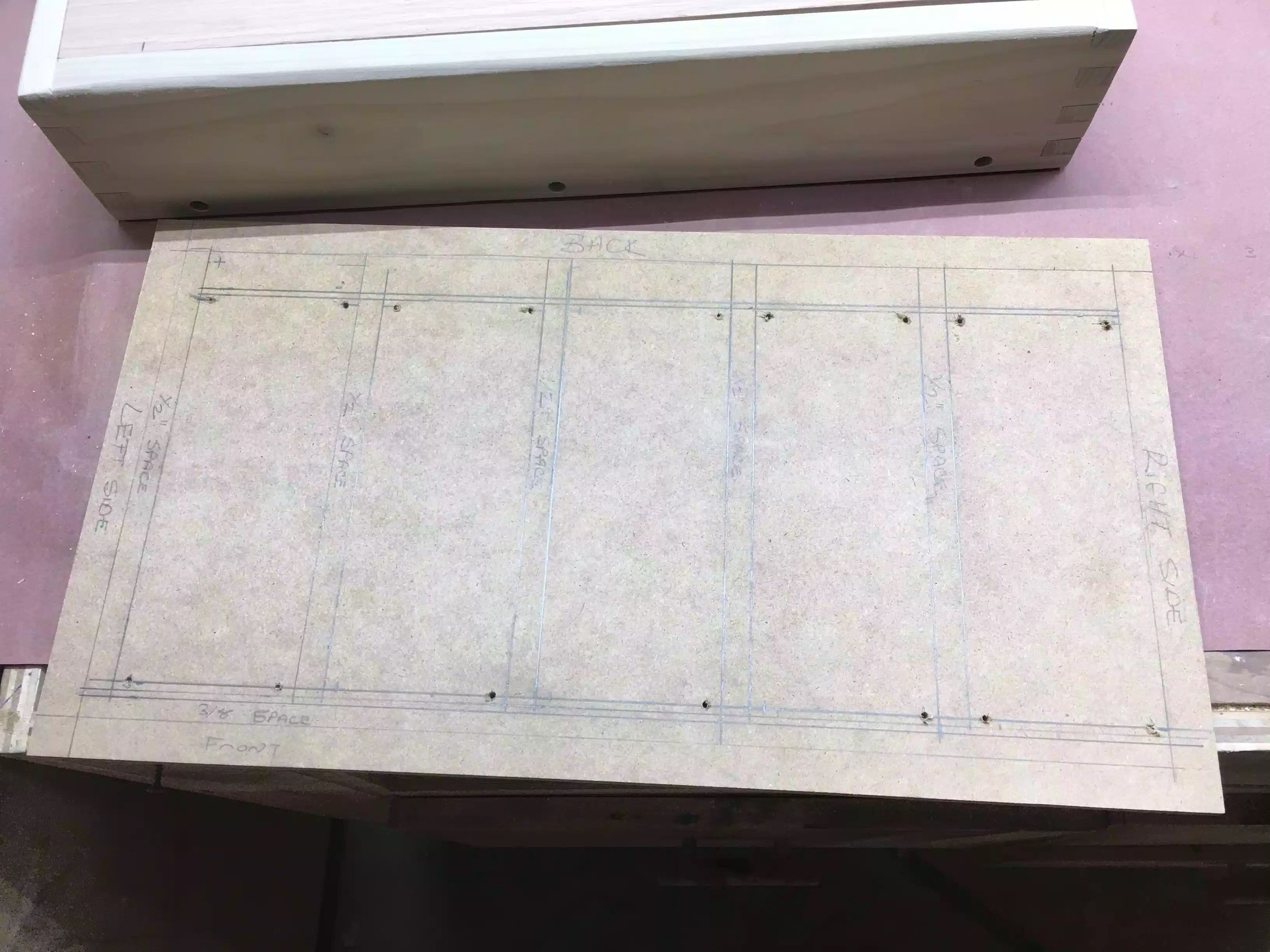

Here is a picture describing all the measurement descriptions I gave above.

Here is a picture describing all the measurement descriptions I gave above.

DRILL PRESS

I needed to drill relief holes in the template because I will be using a jigsaw and because all the cutout are on the inside of the template I needed an entry and exit points for the jigsaw bit. So I used a 1/4” brad point drill bit so as that I could register the bigger bit because I really needed to stay inside my layout lines. I then came back with a 1/2” brad point to finish cutting all the holes, I put 1 hole on each corner of where the recesses will be cut out.

Here is an image after I used the 1/4” brad point drill bit.

Here is an image after I used the 1/4” brad point drill bit.

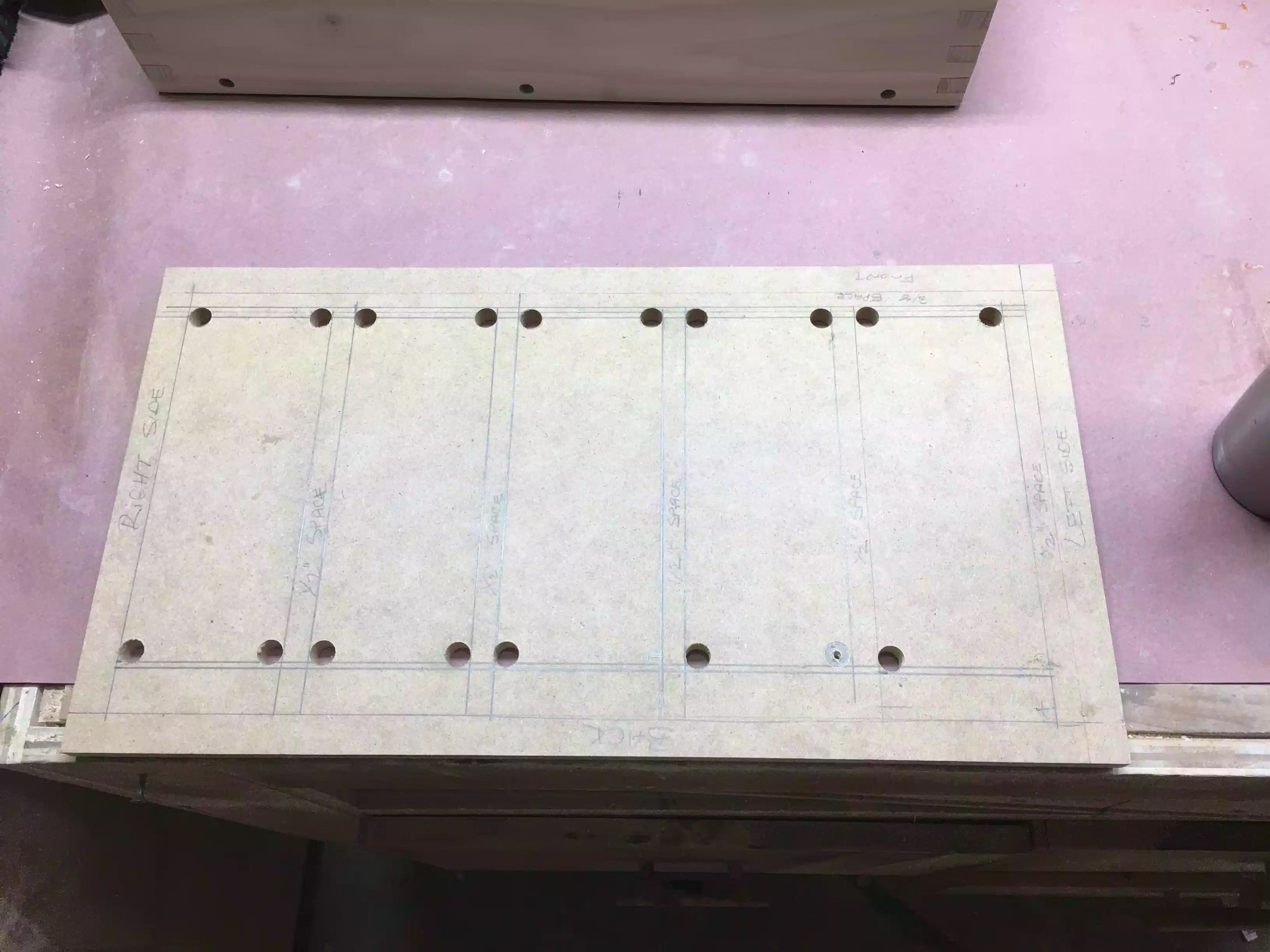

Here is the template after I added the 1/2” holes.

Here is the template after I added the 1/2” holes.

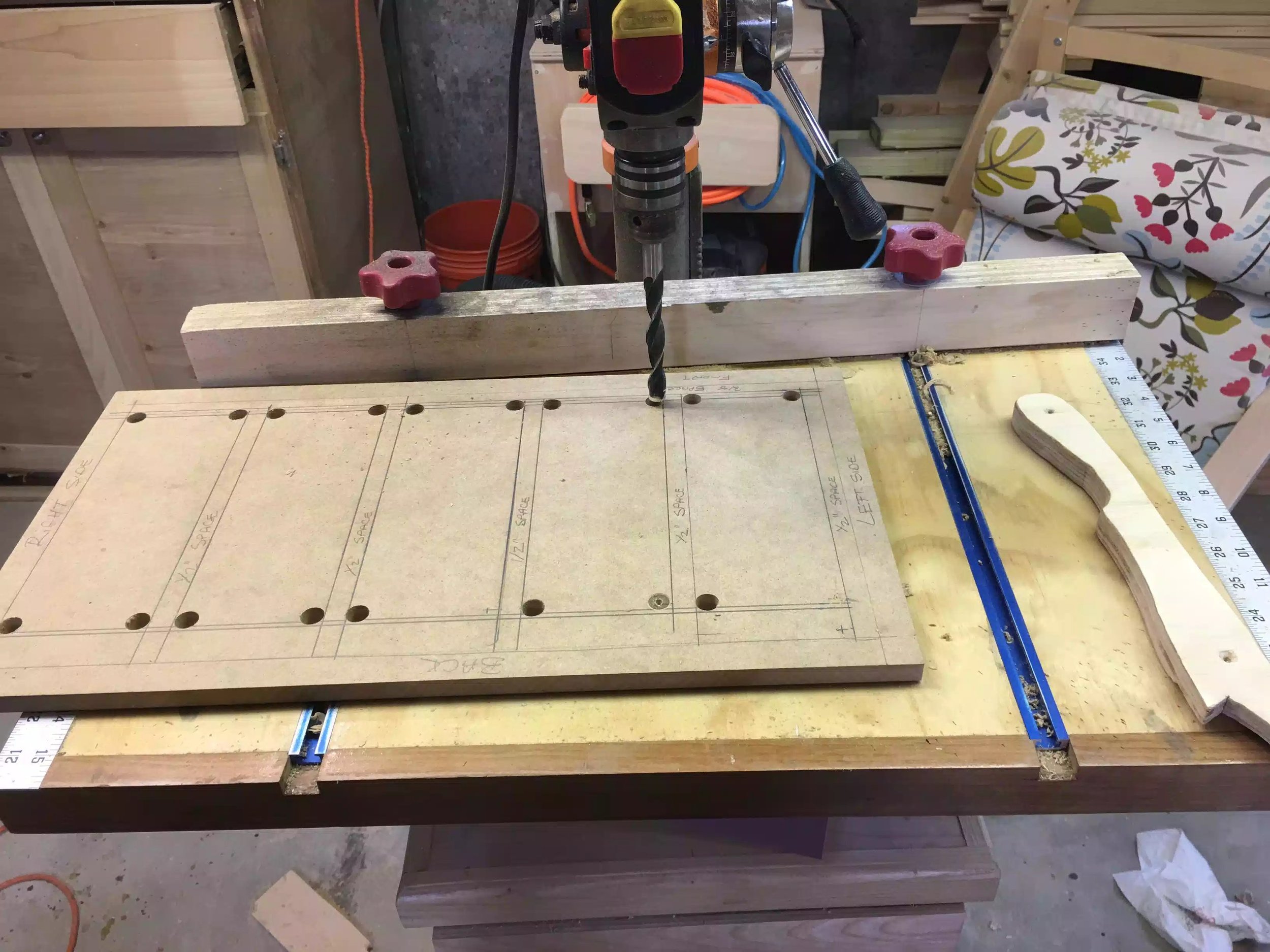

Here is the drill press in action drilling out the 1/2” holes, this diameter bit has just enough room for me to fit my jigsaw blade through.

Here is the drill press in action drilling out the 1/2” holes, this diameter bit has just enough room for me to fit my jigsaw blade through.

TEMPLATE CUT-OUTS

I needed to remove 5 sections of the template and to be honest there was not much to see except me using a jigsaw and dust flying everywhere, always remember to use eye protection and I always use a respiration mask to stop me inhaling he MDF dust as there is a connection with that dust and cancer.

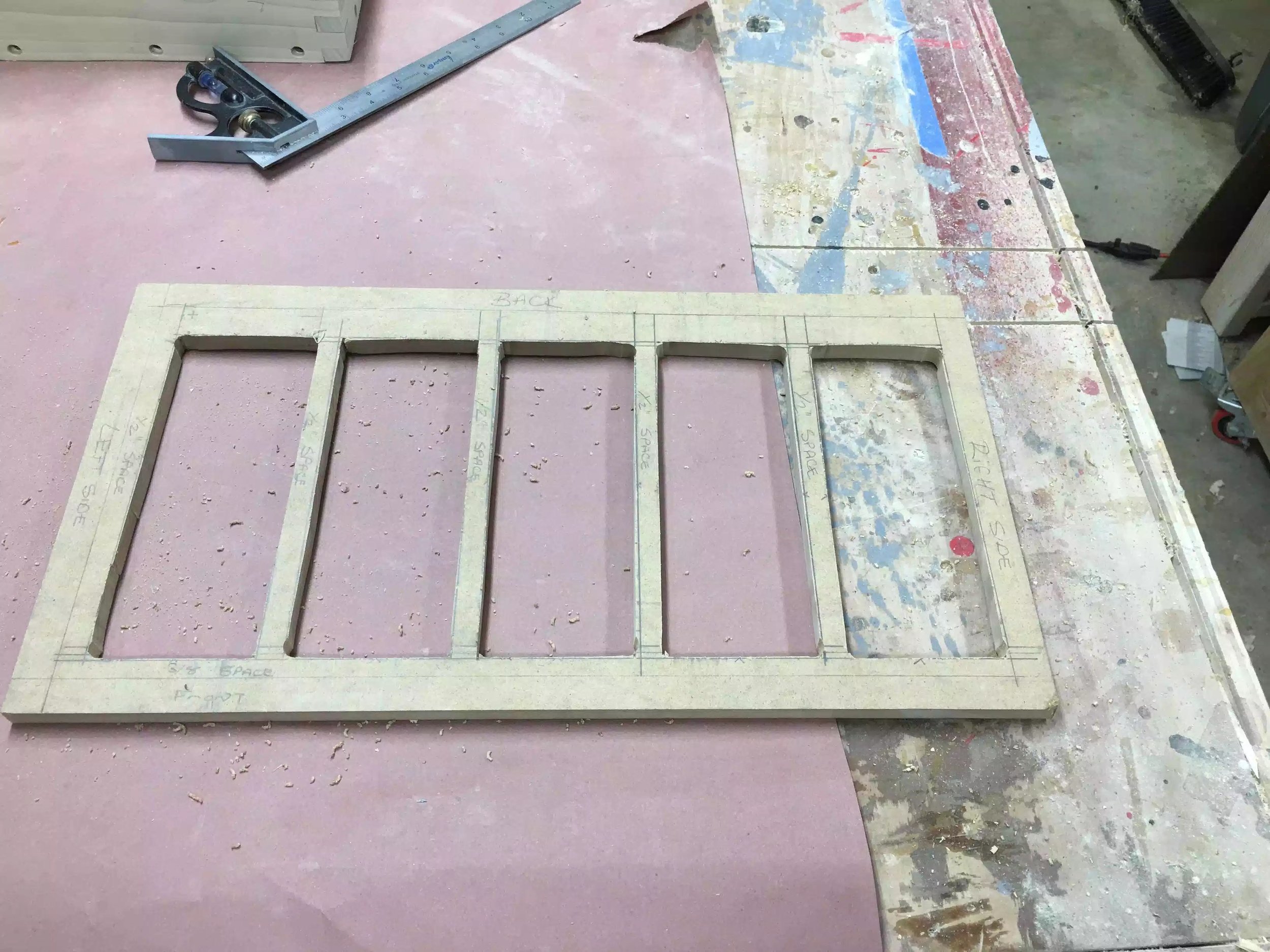

Here is the template almost complete I needed to do a little sanding to even out the jigsaw blade marks, I also needed to square off the corners.

Here is the template almost complete I needed to do a little sanding to even out the jigsaw blade marks, I also needed to square off the corners.

TEMPLATE DRY RUN

Before I used the template on the solid oak top I decided to use it on a scrap piece of plywood so as that if I needed to fine tune the template I could do it before I started actually routing the recesses.

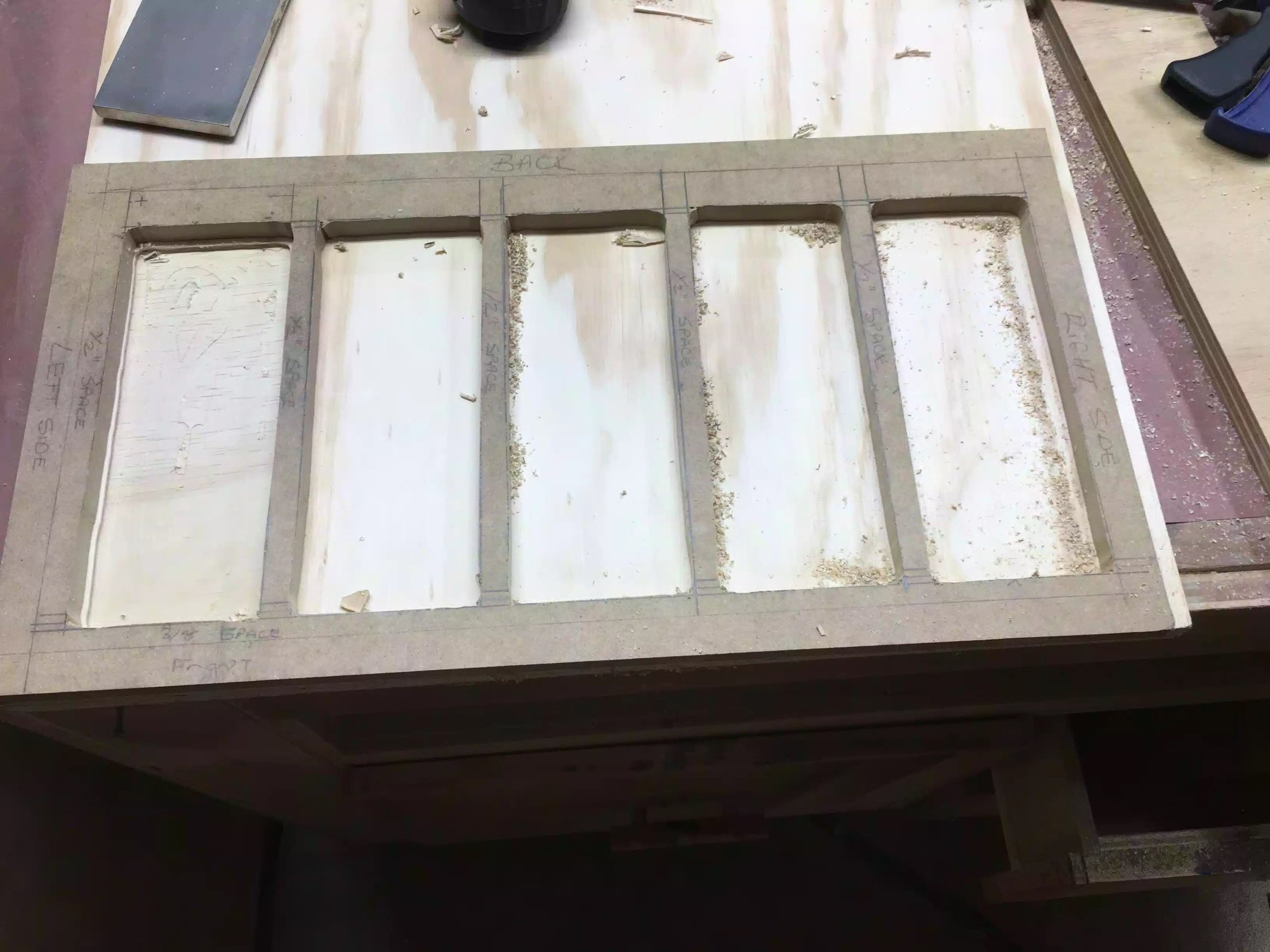

Here is the template on the scrap piece of plywood after using it, I needed to fine tune the template before using it on the oak.

Here is the template on the scrap piece of plywood after using it, I needed to fine tune the template before using it on the oak.

Here is the dry run on the plywood, not too bad for my first time using a template.

Here is the dry run on the plywood, not too bad for my first time using a template.

USING THE TEMPLATE

Next was to actually use the template to route the 5 recesses that I needed for the stones. When it came to deciding the bit style I wanted to use the 1/4” spiral bit but when it came to putting the bit into the router I realized that the bit was not long enough to protrude through the guide bushing, so I moved the bit a little more out of the Colette, enough so as that I went deep enough through the template and into the work-piece, the problem with that was that while I was routing the recess the bit moved out more probably because the Colette didn’t hold the bit in place and it dug deeper into the oak panel.

So I needed to come up with a plan b and that was to use 1/2” straight bit with a 3/4” OD bushing that way I could keep the template dimensions the same and still receive the exact dimensions that I needed to fit the diamond plates and it worked. The only problem was that I didn’t go as deep to get rid off the marks left from the spiral but slipping. In woodworking sometimes you face these issues and you need to find solutions to them, although I was plenty mad at the bit slipping , it was my fault that it happened and I will not be doing that again. To rectify this problem in the future I need to make sure that I have the correct size bit for the operation that I have before I actually start doing the work, a simple solution would be to purchase a router bit extension piece.

To be honest I thought about not writing about this, but woodworking has thought me to own up to mistakes because everyone makes them even the pros and mistakes make you think outside the box when trying to rectify them, at the end of the day I still achieved what I was looking for.

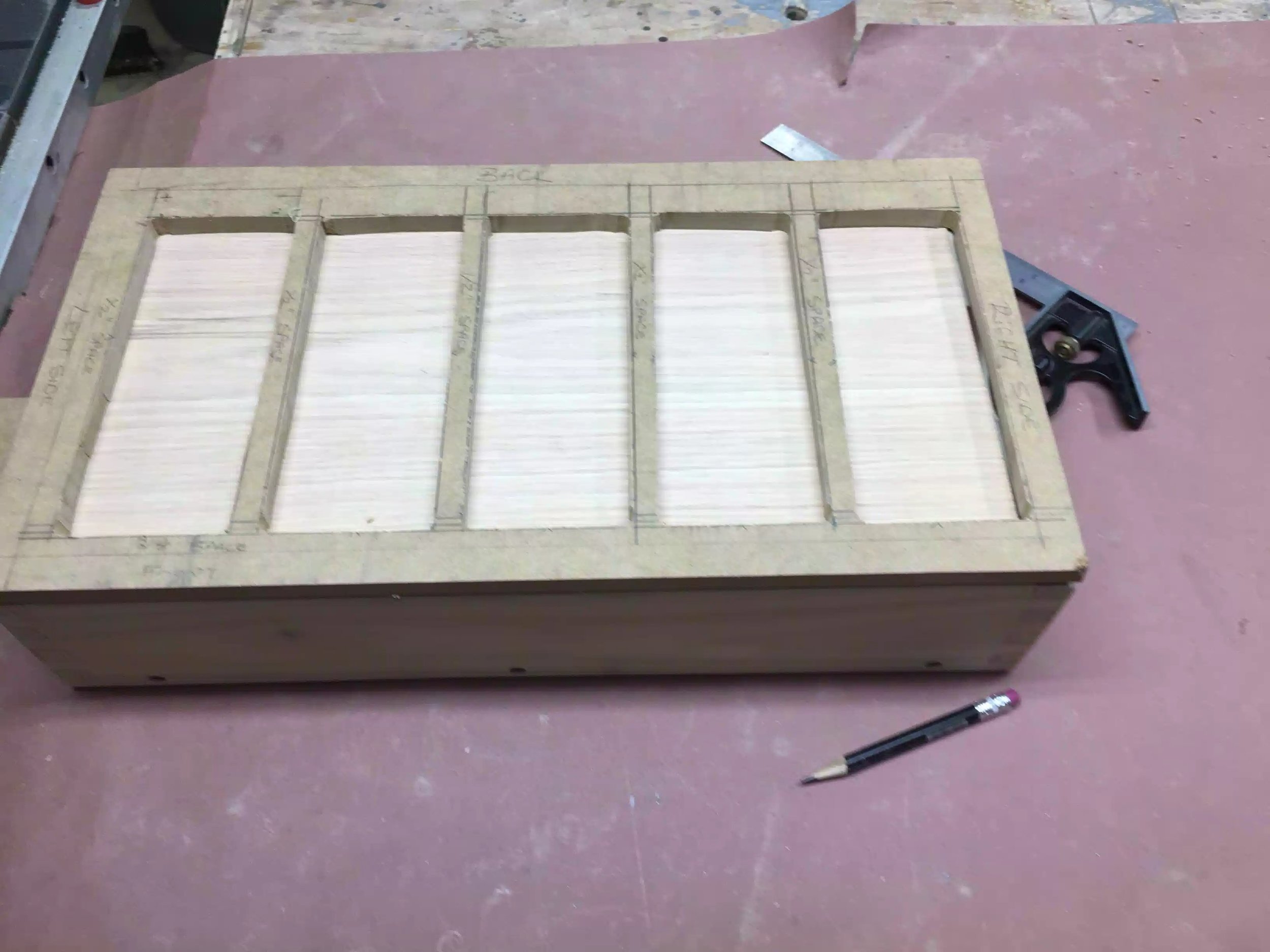

Here is a picture of the template on the oak work-piece, I used double-side tape to secure the template to the oak top.

Here is a picture of the template on the oak work-piece, I used double-side tape to secure the template to the oak top.

RECESSES ALL COMPLETE

Here are a few pictures of the finished top, you can see the stones in place, I only have 2 diamond stones right now and I need to get at least one more, I will be putting a leather strop pad on the last recesss for finishing up my sharpening process, but that comes tomorrow.

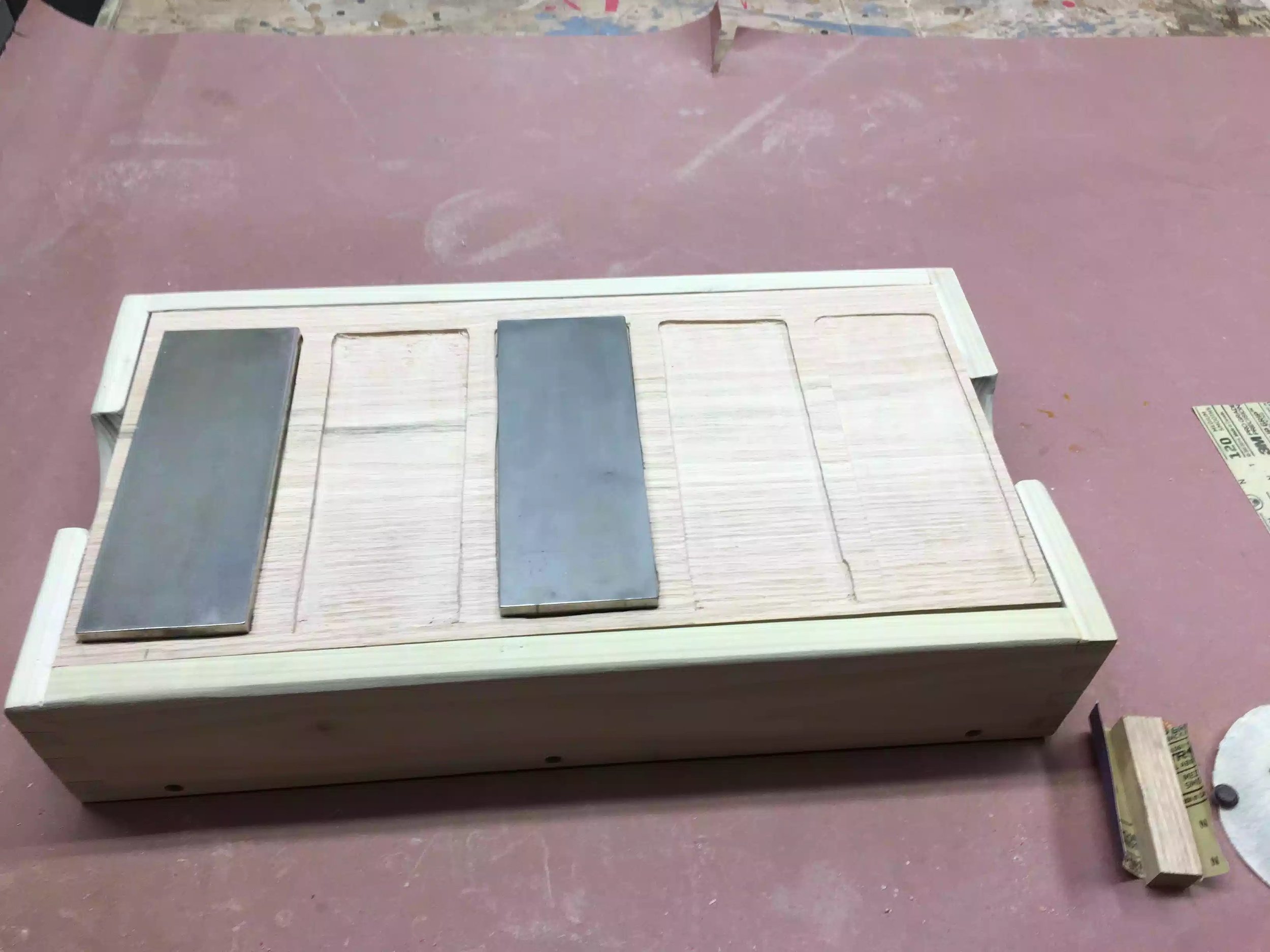

Here are 2 stones sitting in the recesses , they fit great and will not be moving around.

Here are 2 stones sitting in the recesses , they fit great and will not be moving around.

Here is the front of the sharpening station, I was thinking off adding finger pull holes to remove the sharpening stones but they are not so deep that I cant just lift them out of the recess.

Here is the front of the sharpening station, I was thinking off adding finger pull holes to remove the sharpening stones but they are not so deep that I cant just lift them out of the recess.

Here is aside view, as you can see the finger holes are deep enough to pull out the top when I need to have access to the box contents.

Here is aside view, as you can see the finger holes are deep enough to pull out the top when I need to have access to the box contents.

Well that is all I had time for today,

NEXT

  • Make a leather strop pad for the last recess, I have the leather, just need to figure out a way to add some thickness and rigidity to it.

  • Fill the screw holes with wooden plugs

  • Apply a finish to the station.

Portable Sharpening Station: Day II

I returned to the project today after the weekend and I had the following steps to do.

  • Sand down the box frame after the glue-up

  • Make & Install the base

  • Cut the top to its final dimensions

  • Add some round-overs

SANDING

The glue had set and I think I used a bit too much as the squeeze out was on the excessive side, so I took my random orbital sander and went through 120 - 220 grit sandpaper to clean it up. The finger joints look OK there was a few tiny spaces in between the fingers but I will need to fill them in later.

Anytime I get inconsistent spacing between joinery methods I usually use the saw dust and glue trick. All this is is the mixing of a little glue and sawdust from the same species of wood I use for a project in this case is poplar and rub it into the spacing let the glue set for about 30 minutes and then return to sand it down and magically the gaps disappear. I will do this towards the end of the project.

This picture shows the state of the piece after removing the clamps but before sanding it down.

This picture shows the state of the piece after removing the clamps but before sanding it down.

Here is the box after sanding, need to fill in some little gaps around the finger joints but other than that it looks fine.

Here is the box after sanding, need to fill in some little gaps around the finger joints but other than that it looks fine.

THE BASE

The base is nothing special , I am using a piece of 3/4” plywood as it will not be seen and then using the counter-sunk holes I already made around the bottom of the box parts I will use 1-1/4” screws to secure the base. I am not gluing it just in case I need to replace it in the future. I also needed to resolve a problem with keeping tools and accessories in position in the box an not be bumping into each other and possibly damaging them. To solve this issue I decided create a recess for the accessories I will be storing in the box, so I used my palm router and free handed the recesses to hold the tools. I will be using a similar process for the top but that is a much more precise recess and I will need to adapt the process whilst still using the router.

I used this scrap piece of 3/4” plywood for the base. I am cutting it down to final dimensions here on the table-saw.

I used this scrap piece of 3/4” plywood for the base. I am cutting it down to final dimensions here on the table-saw.

I am layout out the lines so as that the honing guide sits inside and will not rattle around.

I am layout out the lines so as that the honing guide sits inside and will not rattle around.

I used my palm router to remove the bulk of the recess and then went back with my chisel and mallet to clean up the edges.

I used my palm router to remove the bulk of the recess and then went back with my chisel and mallet to clean up the edges.

Here is the honing guide accessories all nice and snug, Ill leave it for now and can always remove the base when I need to add more recesses for other tools. I still need to figure out how to store my sharpening stones in the box cavity when its not in use.

Here is the honing guide accessories all nice and snug, Ill leave it for now and can always remove the base when I need to add more recesses for other tools. I still need to figure out how to store my sharpening stones in the box cavity when its not in use.

Another view of the base, before its secured to the frame.

Another view of the base, before its secured to the frame.

Base is all secured and looks functional.

Base is all secured and looks functional.

THE TOP

I am starting work on the top today but will need to finish it tomorrow. The top has a decent amount of work to do because it houses all my sharpening stones, I am creating recesses in the solid oak top so as that when I am using the sharpening station my stones stay stationary. To achieve this I need to use my plunge router together with a template that I need to make, I also need to use a template guide bushing on my router so as that I remove the precise amount of material for the stones to fit in, I purchased the Bosch bushing pack for my Bosch router which is the 1617 plunge router.

I will need to do a little more research on how to use a template for routing as I have never done it before. What I have so far I will show later.

TEMPLATE ROUTING

As you can see from my 3D rendering of the project below the top is to receive 5 recessed sections for the stones and a stropping plate.

3D rendering of the sharpening station.

3D rendering of the sharpening station.

USING TEMPLATES TO ROUTE RECESS

After researching online for a little while I found that I needed a couple of things before I could do this recess in the top. I needed to figure out the following:

  • Do I need tools that I don’t have for this task?

  • Do I need to make a jig of sorts?

  • Measurement considerations?

DO I NEED TOOLS?

After researching I found that I needed to buy a template bushing set for my router, a bushing is a router accessory that can be used with a jig, lettering, inlay work, even reproducing furniture parts. Here's the basic concept: A guide bushing mounts to the router's sub-base with a tube that protrudes below. A straight router bit extends through the tube. The outer surface of the tube rides against an edge guide or template, keeping the bit a set distance (offset) from the edge guide or template, see picture below.

Here is a picture that I found online to show the bushing in the router.

Here is a picture that I found online to show the bushing in the router.

In the marketplace you'll find two bushing styles. The Porter-Cable two-piece (shown below) uses a screw-on locking ring to hold the tube part to the router base. This style fits a wide range of models. The other style of guide bushing clicks into place, but only fits Bosch routers. If your router doesn't accept these common styles of guide bushings, consider buying adapters and sub-bases .

The style of bushing I needed was the one pictured on the right below.


DO I NEED TO MAKE A JIG?

I don’t necessarily need a jig of sorts but I do need to make a template. A template is guide that I will use in conjunction with the guide bushing so as to guide the router to the shape that I need to create. I have decided to make the template because I have quite a lot of milling to do as I need to create 5 recesses and to do that free hand would be extremely difficult and would also mean a lot of clean-up when I was done with the router. Using a template negates all that clean-up probably with a chisel and also provides nice clean edges in less time.

I need to figure out how to make the template, that is tomorrow!!

Here is my router and bushing set.

Here is my router and bushing set.

MEASURING OFFSETS

To figure the offset, measure the outside diameter (OD) of the guide bushing tube and subtract the diameter of the bit. Next, divide this figure by 2 to determine the offset. In the example at below subtract the 1⁄2 " bit diameter from the bushing's 3⁄4 " OD. You get 1⁄4 ". Now divide this number by two and you arrive at a 1⁄8 " offset.

This diagram can aid in how to calculate the offset

This diagram can aid in how to calculate the offset

SO FAR!!!!!

This where I leave it for today, I had the main box, bottom and top made. Below are some pictures as to where I left off today.


The lid is on but that about it, I need to put the recess in tomorrow.

The lid is on but that about it, I need to put the recess in tomorrow.

The finger cut out fits perfectly for my fingers to fit in and pull off the top

The finger cut out fits perfectly for my fingers to fit in and pull off the top

Some accessories in there nice new recessed homes.

Some accessories in there nice new recessed homes.

NEXT!!!!!

  • Make template for routing the recesses

  • Make side handles

  • Apply finish, I usually use a poly-crylic for shop projects.

  • Start sharpening

Until the next day, take care

Ed
