Last night a finished the cart and to be honest it was the most fun I had on this entire project because I made my own drawer pulls which is something I never did before. I used the solid ash that I purchased on that road trip I made last week and I am so glad that I made these pulls because I think I made a total of 25 pulls and it only cost me $6.. but there was a good beat of work needed to make them.
MAKING DRAWER PULLS
- 3D Model on Sketchup
- Ripped the ash on tablesaw
- Router table time
- Using my Kreg Jig to install them
- Finished pictures of the cart
Since I never made drawer pulls before I used my 3D Modeling software call Sketchup to draw up a scaled model from which to work from. Below is that model.
I had a piece of 1"X 6" X 30" of ash that I needed to rip into 1-1/4" wide strips, this is how high my drawer pulls would be since that was pretty uneventful I didn't take any pictures.
ROUTER TABLE TIME

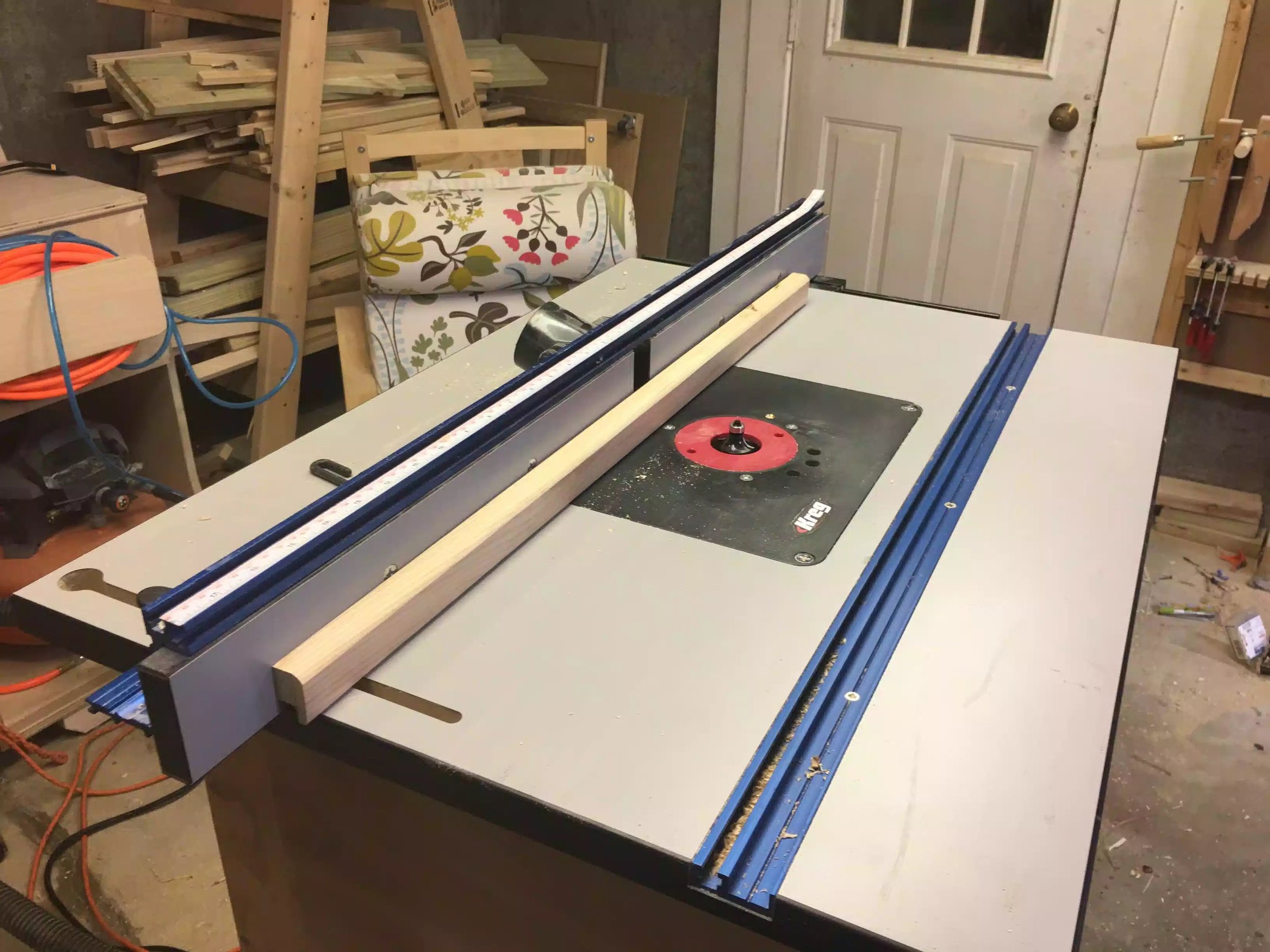

The bulk of machining was on the router table, I purchased a new set of router bits that I was dying to use and here was my perfect project to use them on. Now that I had my 30" long blank I figured I could make 5 pulls per strip so everything that I am writing about I repeated 5 times for all the pulls.
I used 3 router bits in making this pull

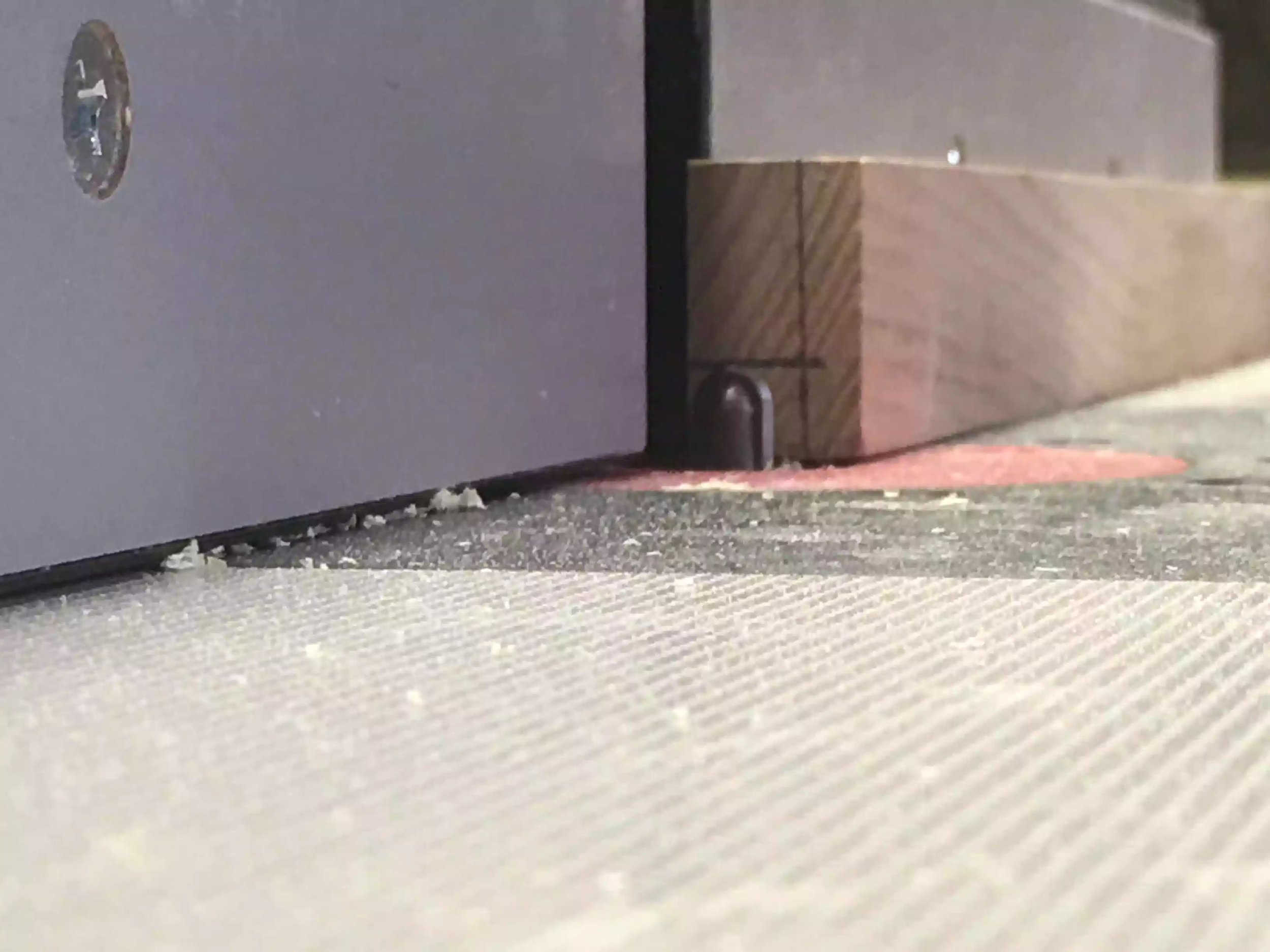

- The first was a 1/4" core box bit to use on the underside of the handle where I would be removing the wood that would form hand grip on the underside of the handle. I did this incrementally because I didn't want to remove so much wood at one time so as to avoid drastic tear-rout.

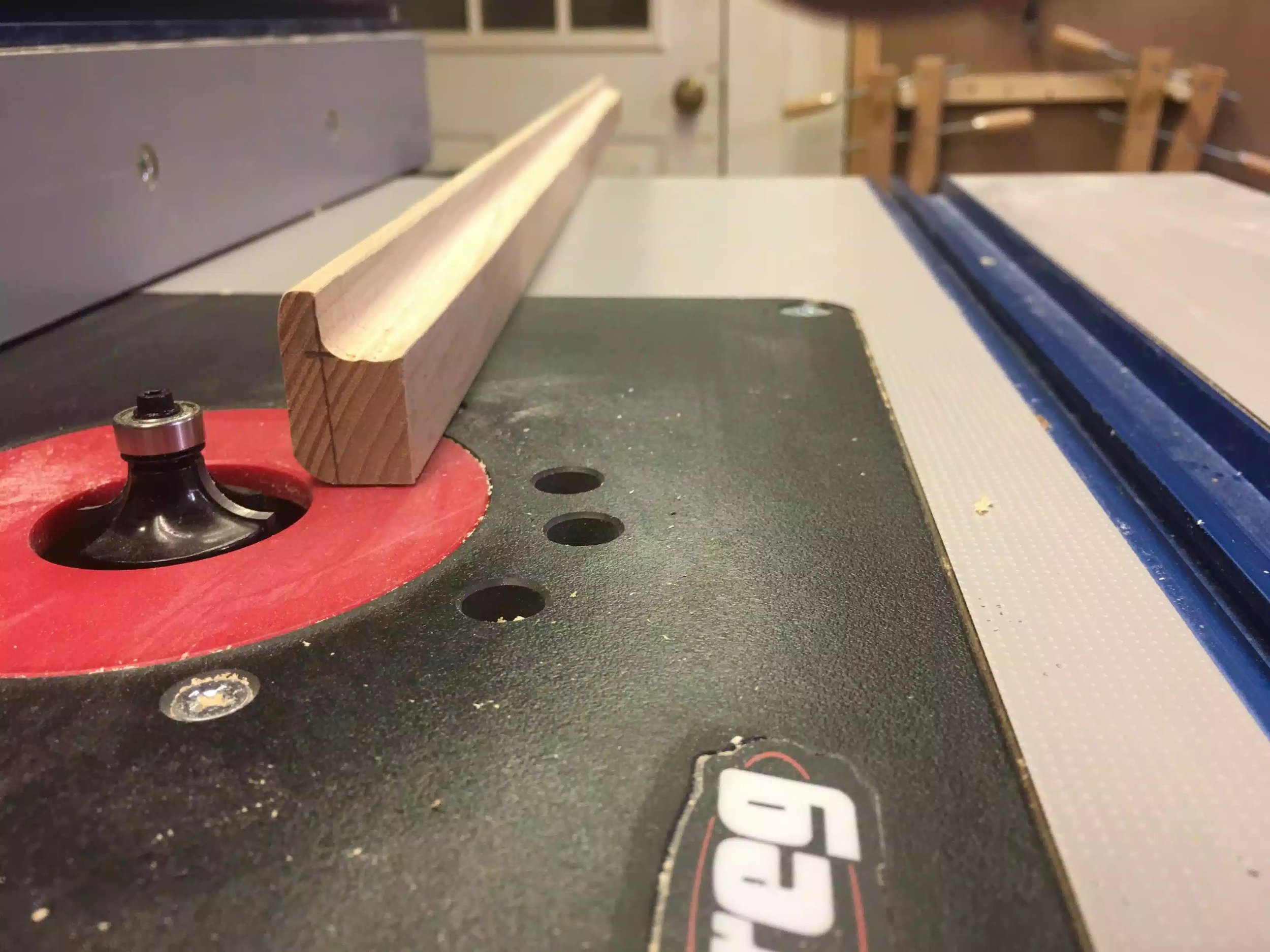

- The second bit was 1/8" round-over bit this is where I would add a rounded profile on the outside lip of the pull, this was done very quickly.

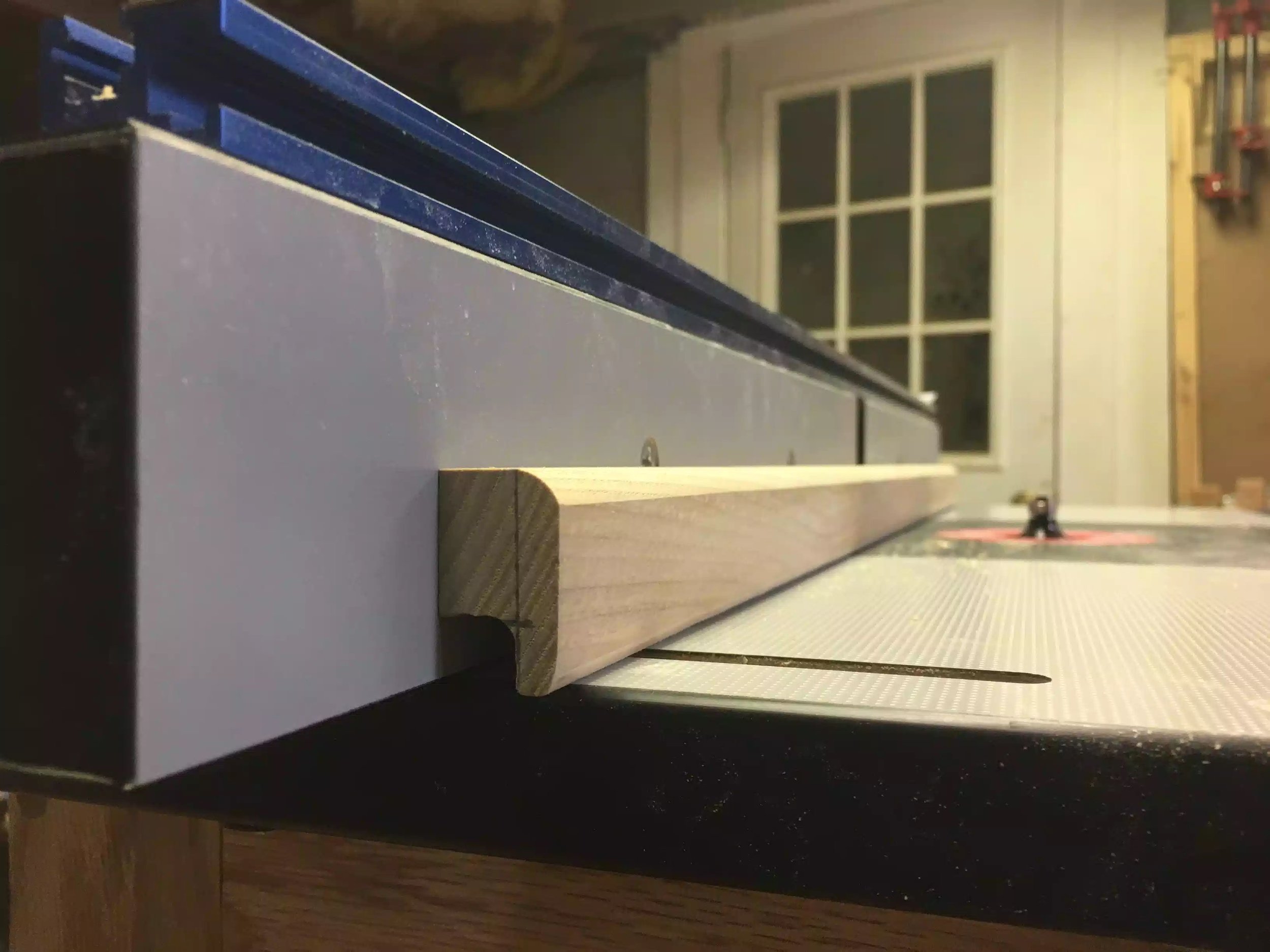

- The last bit I used was a 3/8" round-over that I used on the top outside edge of the pull to ease the look of the handle.

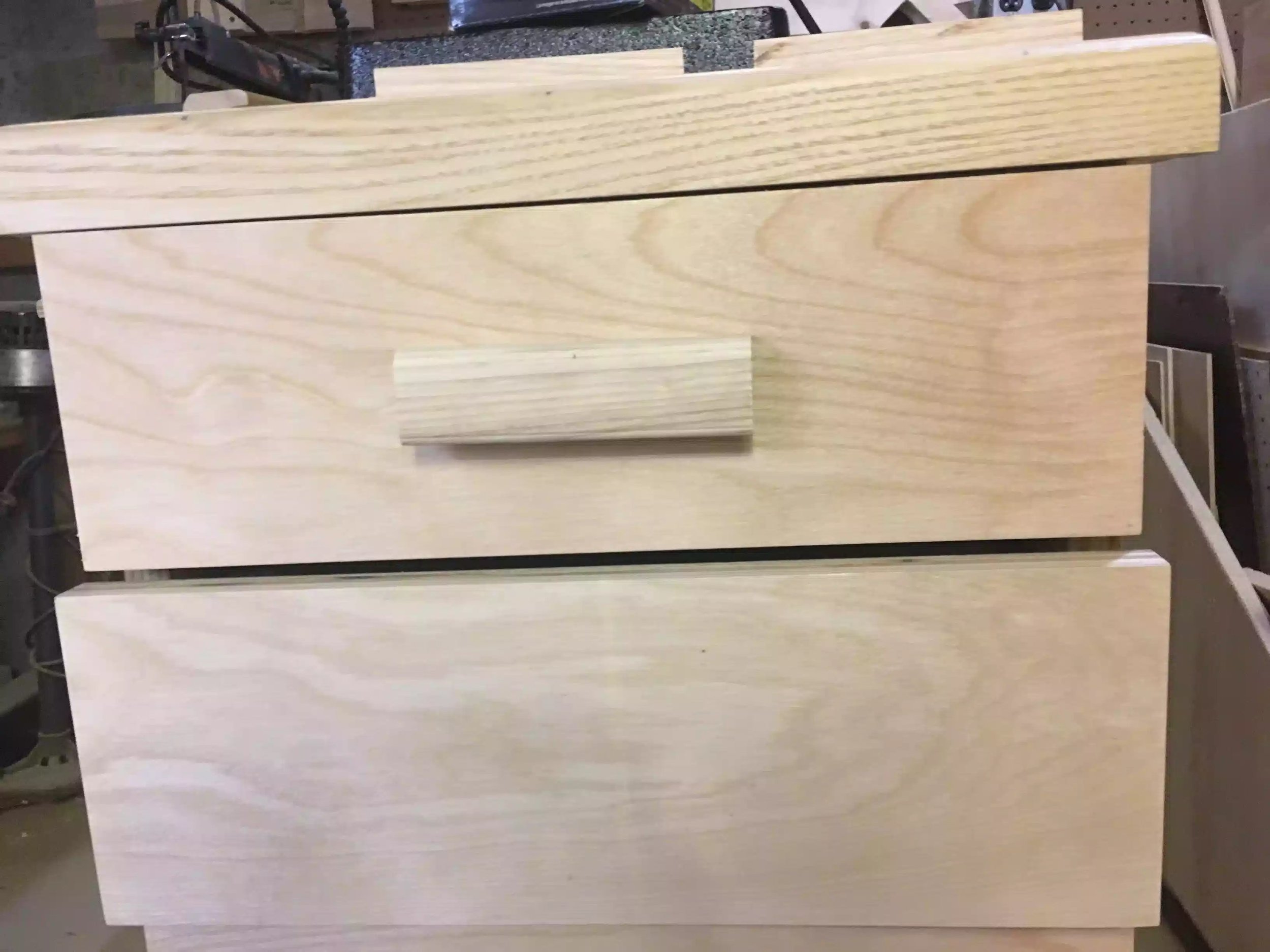

KREG JIG TIME

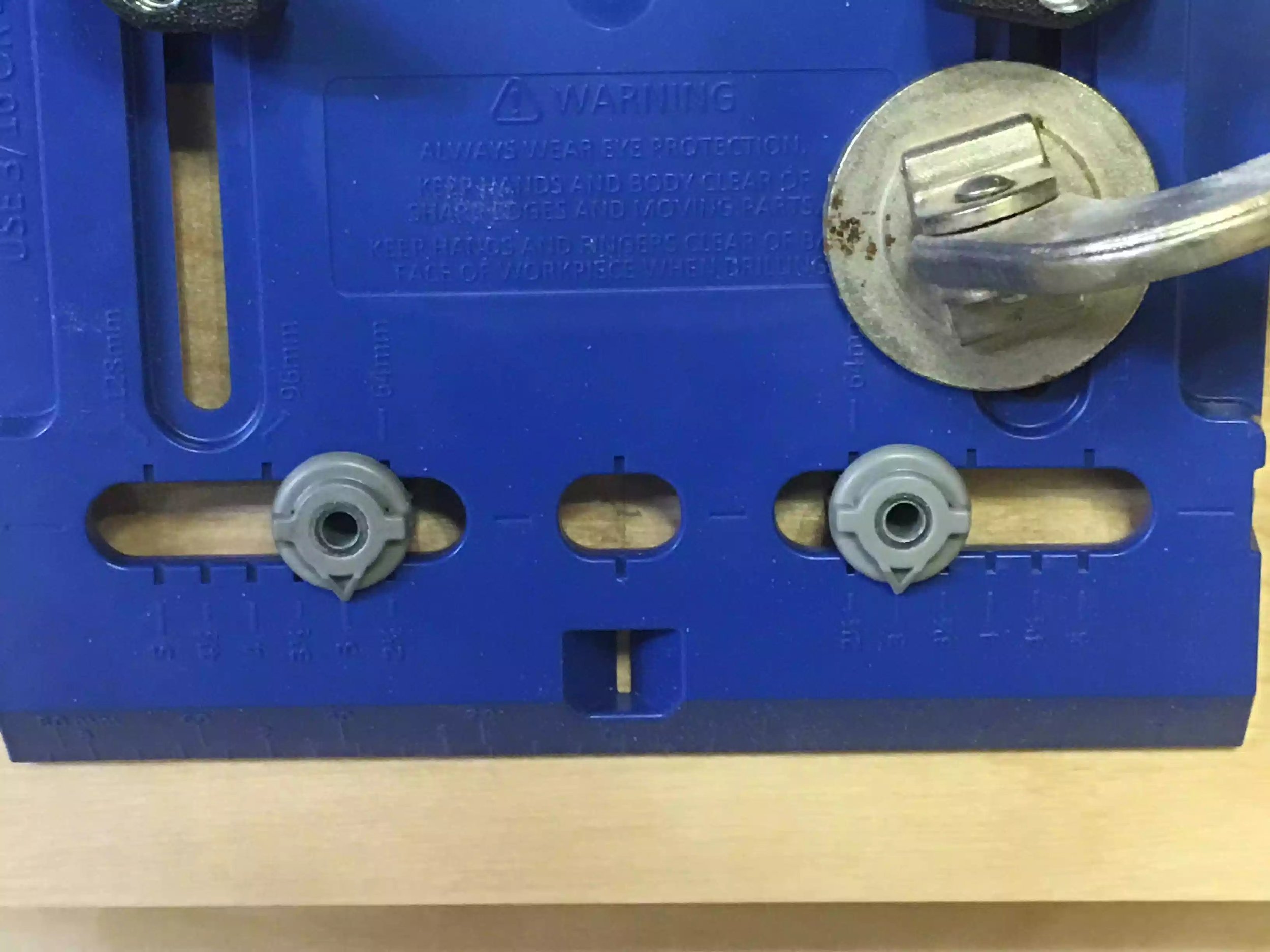

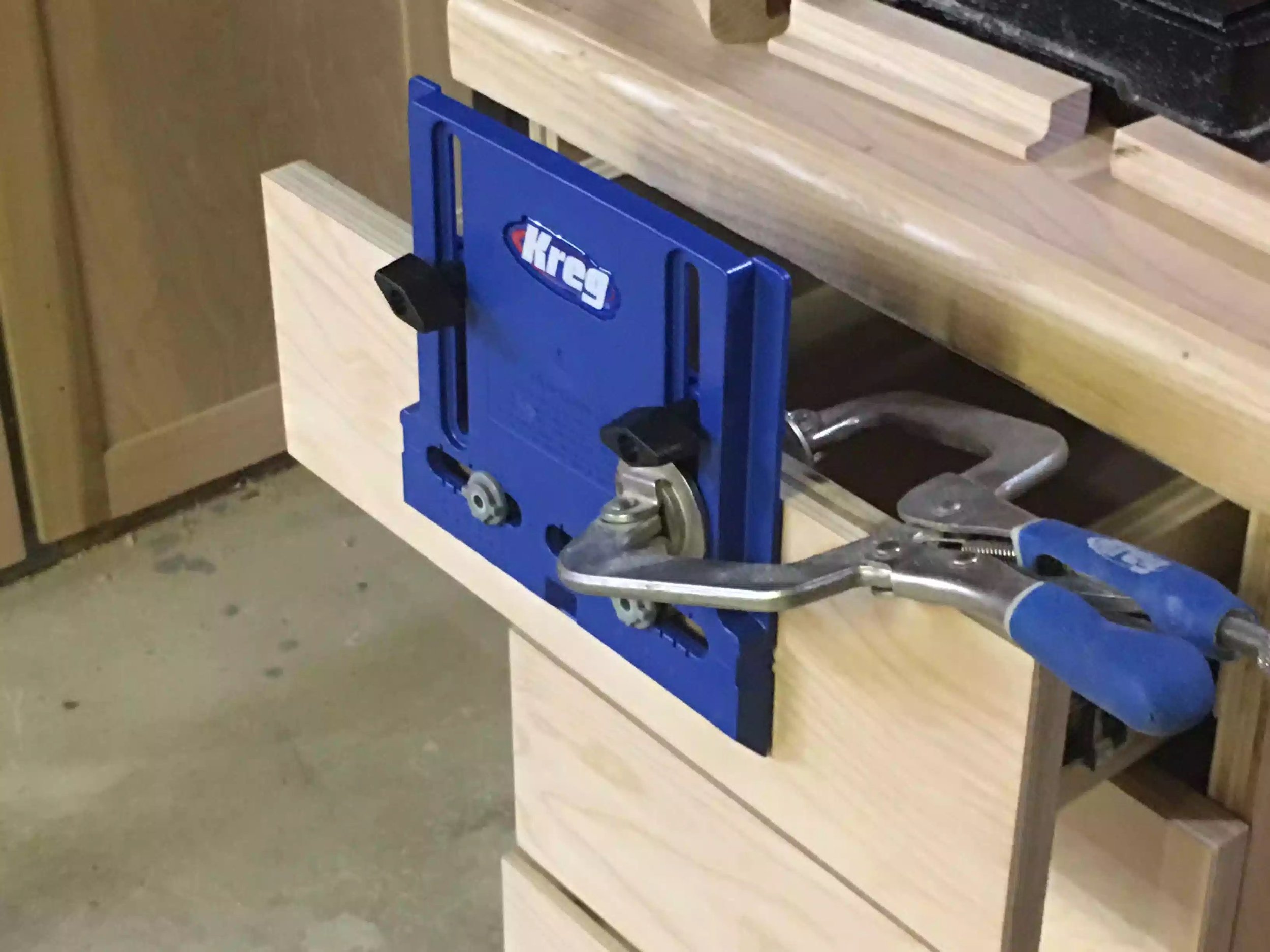

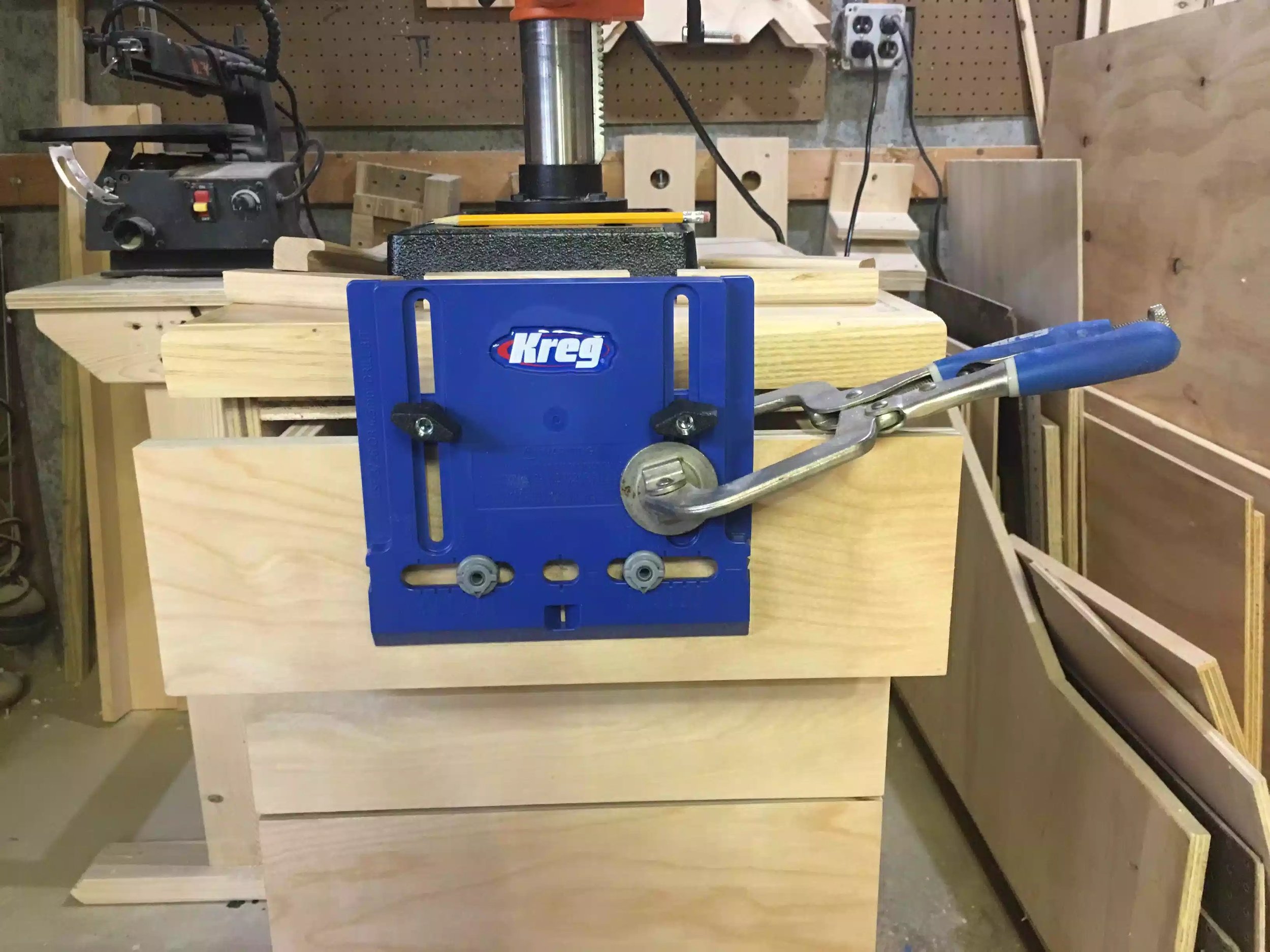

I purchased the Kreg jig to install the drawer pulls that way they would all be unifrom on the cabinet, to be honest I usually make my own jigs for this type of project but I got this on sale and thought that I would try it out, thinking that it would remove all the work out of placing them on the false fronts and to a degree it did. But I still needed to do a little measuring to center the pulls. To be honest I didn't read all the instructions for the jig I kind of just opened the pack and started using it.

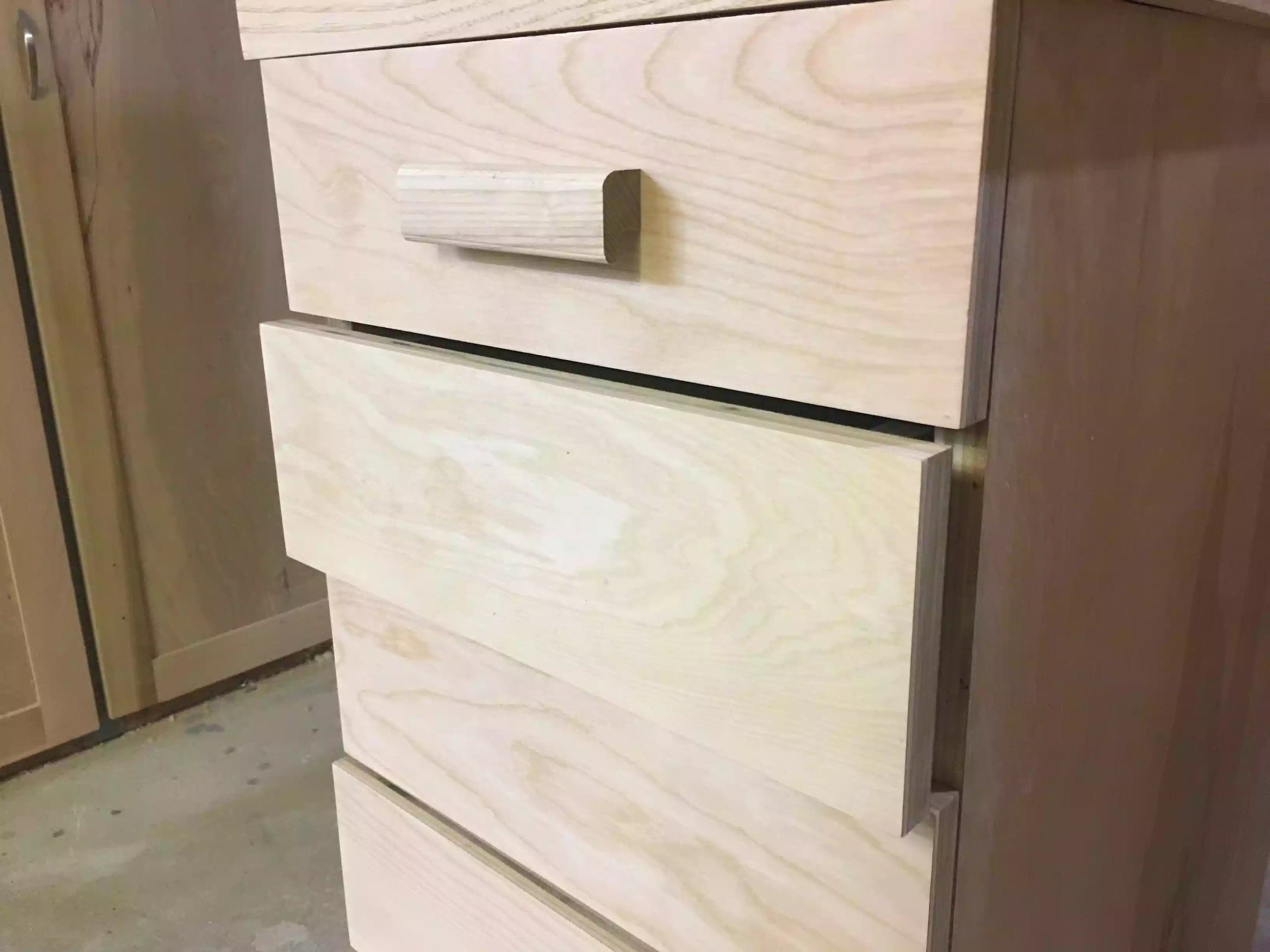

That's a wrap I hope you have enjoyed this project with me, please feel free to leave any comments or comments on the project, I am thinking about making plans avavilavle for this project but I have not decided yet.
