Lego Tray

Lego Tray: All Finished

So today I finally put all the finishing touches on my sons Lego Tray and I have to say it came out better than expected.

HERE IS WHAT I DID

  • Some Sanding

  • More router work

  • Added Handles

  • Adhered the baseplates to the tray

  • Applied a finish

SOME SANDING

So after the paint had dried on the name I routered into two of the sides it was time to clean that up by sanding it, so I used 80 grit upto 320 grit paper to make the name pop. It isnt a bad job for some free routing.

Needed to sand the entire tray so I worked up from 80 grit to 320 grit for the entire tray.

Needed to sand the entire tray so I worked up from 80 grit to 320 grit for the entire tray.

BEFORE  Sanding

BEFORE Sanding

AFTER  sanding.. came out great

AFTER sanding.. came out great

MORE ROUTER WORK

I also decided that I wanted to router a chamfer along the bottom edge of the tray to give the effect that it is floating on the surface. So I used a chamfer bit in my palm router and did all outside edges of the base.

Here is my palm router with a chamfer bit installed in the Colette

Here is my palm router with a chamfer bit installed in the Colette

Here is a close-up of the chamfered edge as viewed from the bottom of the tray.

Here is a close-up of the chamfered edge as viewed from the bottom of the tray.

Here is a close-up of the camfered edge it really makes the whole tray look like its floating, I love this kind of subtle design element.

Here is a close-up of the camfered edge it really makes the whole tray look like its floating, I love this kind of subtle design element.

ADDED THE HANDLES

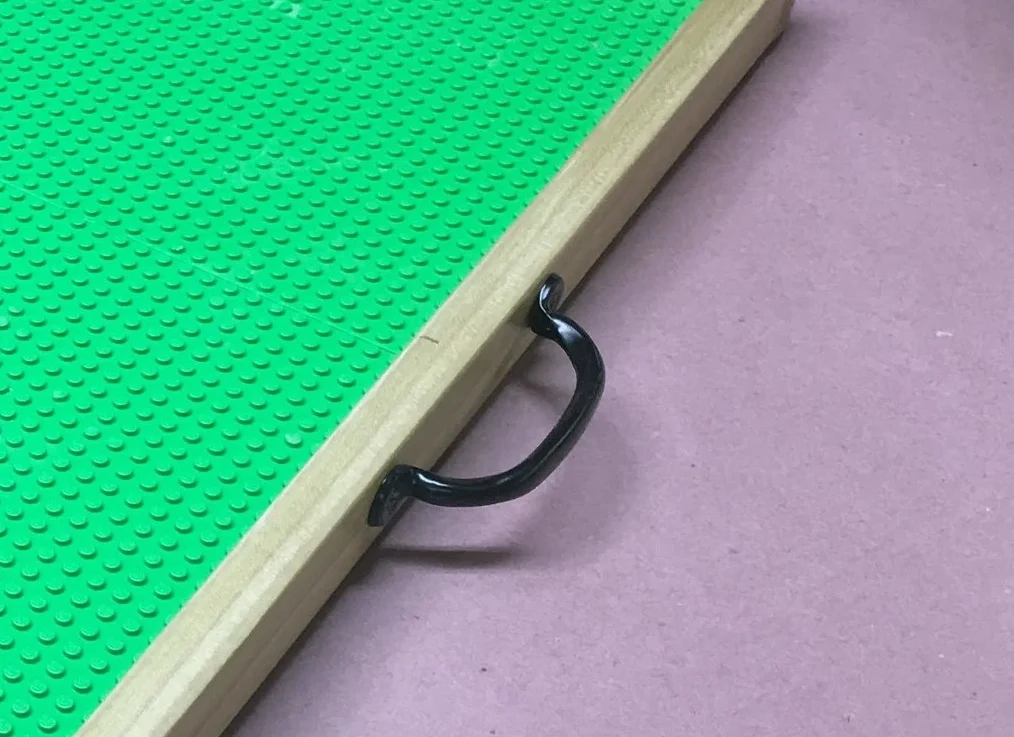

I wanted a simple way of carrying the tray around so I just purchased some big box style handles and attached them in the center of the frame components that didnt have his name routered in.

I had wanted to use handles that I made for a project during the summer that I had left over but they were too big to fit on the 1-1/2” wide sides of the trays frame, but these will do.

I had wanted to use handles that I made for a project during the summer that I had left over but they were too big to fit on the 1-1/2” wide sides of the trays frame, but these will do.

Adhered the Base-Plates

Unfortunately I didn’t get a chance to take any pictures of me doing this step because I had very little time in getting the gorilla glue onto the Lego base-plates and also the wooden base of the tray. The process was pretty straight forward I needed to scuff the bottom faces of the Lego plates and the plywood base so I used 60 grit sandpaper on both, this gives the gorilla glue a place to go to make sure I get a good contact between the 2.

Here is me using the 60 grit sand paper to rough up the bottom of the Lego bases plates

Here is me using the 60 grit sand paper to rough up the bottom of the Lego bases plates

Here is me doing the same to the plywood base.

Here is me doing the same to the plywood base.

Next I used the gorilla glue to adhere the plates to the plywood and after they were fit in I used some heavy paint cans to weight down the Lego bases so as as that I got a good adherence to the plywood.

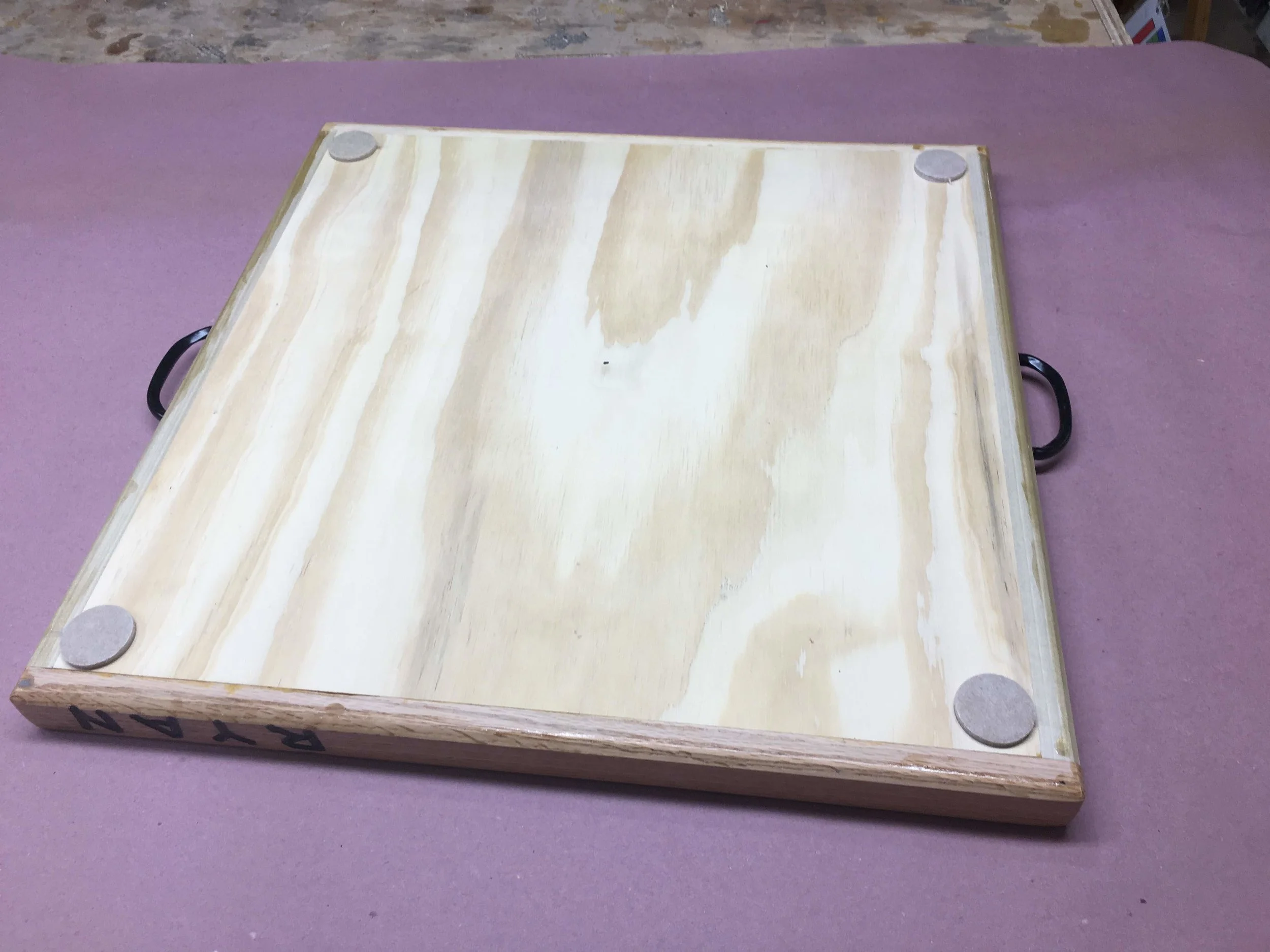

Next I added some felt pads to the underside of the tray that way it would npt mark the wooden floors if it go slid around.

Here is a picture of the felt pads.

Here is a picture of the felt pads.

Applied Finish

All that was left to do was to apply a finish and I had some oil based polyurethane leftover from the Beer Flight project I had just completed, I applied 2 coats today and that was it, all finished.

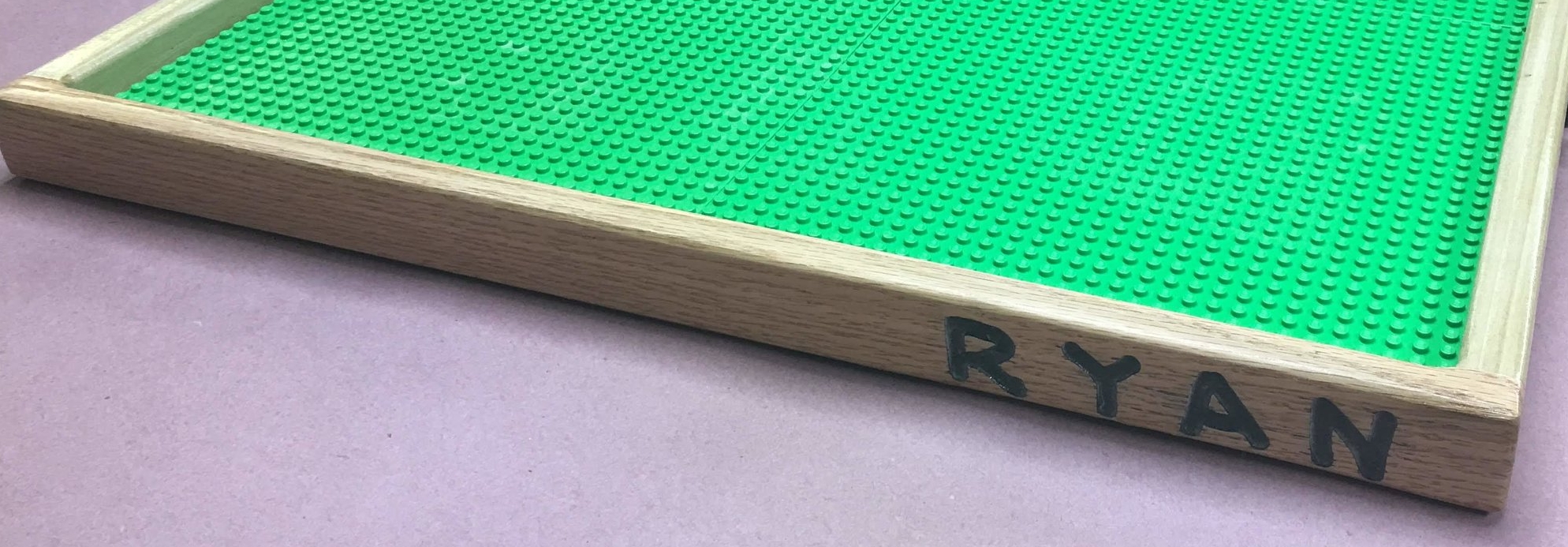

All Finished

Below you can see a slideshow of the completed project, this was a super simple project that anyone can make and it will provide hours of fun to children of all ages.

Thanks for reading this short blog and I will catch you the next time.

Lego Tray For my son

So my wife asked me to make something that my 5 year old son could use with his Lego and I wanted to make him one of those Lego tables with drawers but honestly had no where to put one so I did some research online and found this nifty little project where it is basically a tray that you can set on the floor and build on and when it is not in use he can just slide it under his bed.

I didn’t make any plans for this and pretty much made it on the fly using some scraps I had lying around the shop I did need to get some materials and they are listed in this post.

This project should only take 3 stages and Part one is below:

WHAT I DID TODAY

  • Purchased materials

  • Cut pieces to size

  • Pocket Holes

  • Router Time

  • Assembling the tray

  • Router Time 2.0

  • A little paint

PURCHASE MATERIALS

I went to my local big box store and Target o get some supplies and here is what I got

  • (4) Lego base-plates (10”x10”)

  • 24” x 24” x 3/4” plywood panel

  • Gorilla Glue

  • I used scrap oak and poplar but you will need a piece of 1”x2” x 8” lumber.

  • (2) Utility handles

  • Pocket hole screws 1-1/4”

  • Furniture Pads

Here are all the supplies I got.

Here are all the supplies I got.

Here are the felt pads, screws and 2 handles.

Here are the felt pads, screws and 2 handles.

CUT PIECES TO SIZE

In order to figure out what all the dimensions needed to be for all the parts and the plywood panel I needed to open all the Lego base-plates and get the overall size and it worked out to 20-1/8” square.

so I cut the 3/4” plywood panel to 20-1/8” square on the table saw, and then cut all the wood strips which make up the frame that surrounds the panel.



Here is the wood pieces getting chopped to final size.

Here is the wood pieces getting chopped to final size.

Here is the plywood cut to final size

Here is the plywood cut to final size

POCKET HOLE TIME

In order to attach the outside frame pieces to the base I needed to added a joinjery system so I decided to keep it easy and just add pocket holes so I just add screws to attach the sides while the glue sets up.

I use the Kreg K4 jig and made a station for it where all my accessories for the jig are stored. So I placed 4 pocket holes on each side, below you can see the finished panel and the K4 station.

Here is the finished pocket hole base

Here is the finished pocket hole base

Here is one image of Kreg K4 pocket hole system that I used

Here is one image of Kreg K4 pocket hole system that I used

Here is another image of the Jig

Here is another image of the Jig

ROUTER TIME

I actually used the router twice in this build, I wanted to add my sons name to the outside edges of the frame so I used my Palm router to freehand his name but before I did that I needed to add some outlines of where I wanted to position the name.

Added outlines and even spaces of where I wanted the letters to go.

Added outlines and even spaces of where I wanted the letters to go.

Using my palm router with a 1/4” upcut router bit to carve the letters in.

Using my palm router with a 1/4” upcut router bit to carve the letters in.

Next I used a sharpie marker to write the letters in, also gives me a visual guide when using the router.

Next I used a sharpie marker to write the letters in, also gives me a visual guide when using the router.

Finally his name got carved, I will also adding black paint to the letters to make sure they stand out.

Finally his name got carved, I will also adding black paint to the letters to make sure they stand out.

ASSEMBLING THE TRAY

I took the following steps to assemble the tray:

  • Added glue to the inside faces of the 4 frame parts

  • Assembled them in the clamping jig

  • Inserted all the pocket screws into their respective holes

Here is the panel all set up in the pipe clamp jig, just about getting ready to screw them home. Glue has already been applied to the inside face of the frame pieces.

Here is the panel all set up in the pipe clamp jig, just about getting ready to screw them home. Glue has already been applied to the inside face of the frame pieces.

Here is another image of pipe clamp set-up I used the clamps because when using pocket holes they have the tendency to move the work-piece as you are screwing the pocket hole screws home, this set-up alleviates that.

Here is another image of pipe clamp set-up I used the clamps because when using pocket holes they have the tendency to move the work-piece as you are screwing the pocket hole screws home, this set-up alleviates that.

ROUTER TIME 2.0

I also wanted to add a round-over to all the edges of the frame so that my son didnt hurt himself on the tray, so I took it over to my router table with a round-over bit in the router and did all the outside edges, then I used my palm held router to get the inside edges of the frame and it came out great but tomorrow I will be sanding it down to make it even smoother to the touch.

Here you can see the round-over profile on the outside and inside edges of the frame.

Here you can see the round-over profile on the outside and inside edges of the frame.

A LITTLE PAINT

I wanted to add some black paint to the carved out letters for my sons name so I used some I had on hand and let it dry over night as I will be applying a polyurethane coat tomorrow. I will be sanding this whole surface down tomorrow which hopefully will make his name pop on the tray.

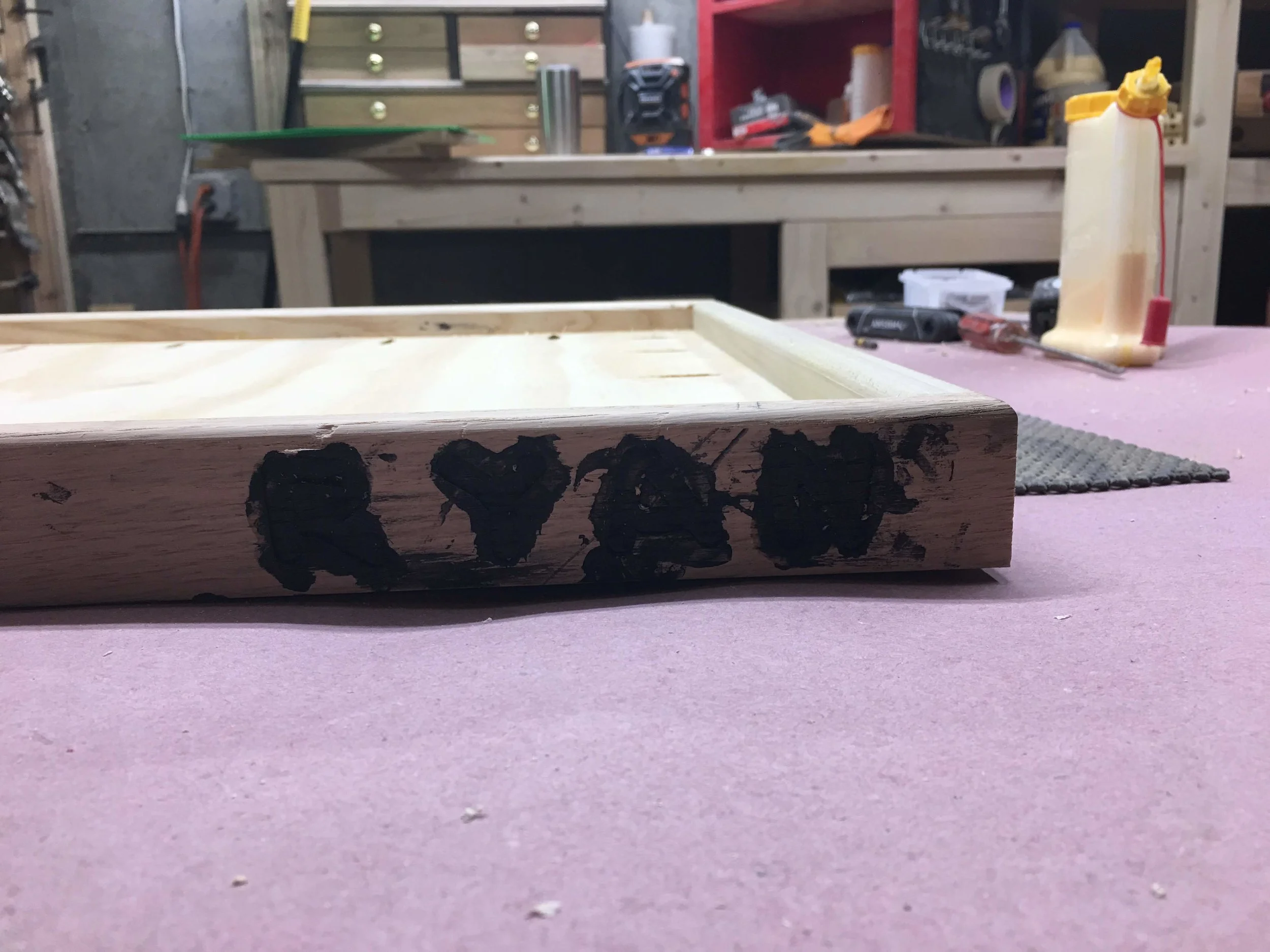

Messy looking right now but I will clean it up tomorrow.

Messy looking right now but I will clean it up tomorrow.

HOW I LEFT IT!!!

Below shows a picture of how I left the project today

Here is the project as I left it today, more finishing work tomorrow

Here is the project as I left it today, more finishing work tomorrow

NEXT

  • Sand the entire project

  • Apply the polyurethane prob 2-3 coats

  • Apply the Lego base-plates using Gorilla Glue
