Dust Collector Cart Project : Completed

,

Well for the most part the dust collection cart is finished, I needed to do a few little things to finish it up.So here is what I did today.

  • Applied a few coats of polyurethane to the sides and the base of the cart

  • Attached all the mounting hardware to the divider

  • I filled the gap that was left in the base.

  • All finished

POLYURETHANE

As I said in my last blog post I was going to apply a couple of coats of polyurethane to the base and side assemblies in the cart, this adds a couple layers of protection to the cart and it is also easy to wipe down.

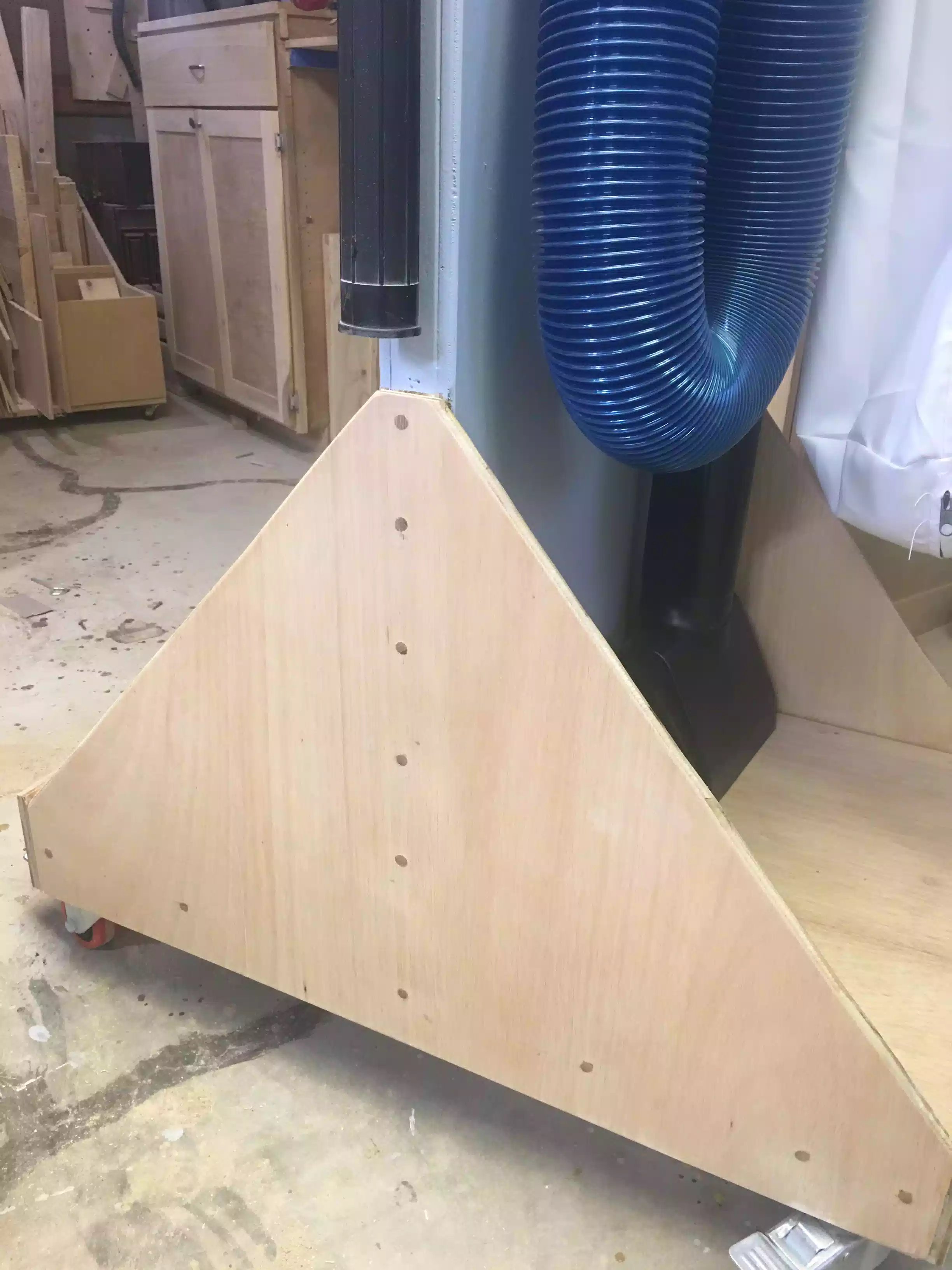

Here is an image of one of the sides after applying the 2 coats of polyurethane, the wooden plugs pop and look nice, there was no point painting as the sides would get the most abuse.

Here is an image of one of the sides after applying the 2 coats of polyurethane, the wooden plugs pop and look nice, there was no point painting as the sides would get the most abuse.

MOUNTING HARDWARE

I needed to add the mounting clip that holds the dust collector in place as well as all the mounting hardware that keeps all the handles and dust collections hose in place.

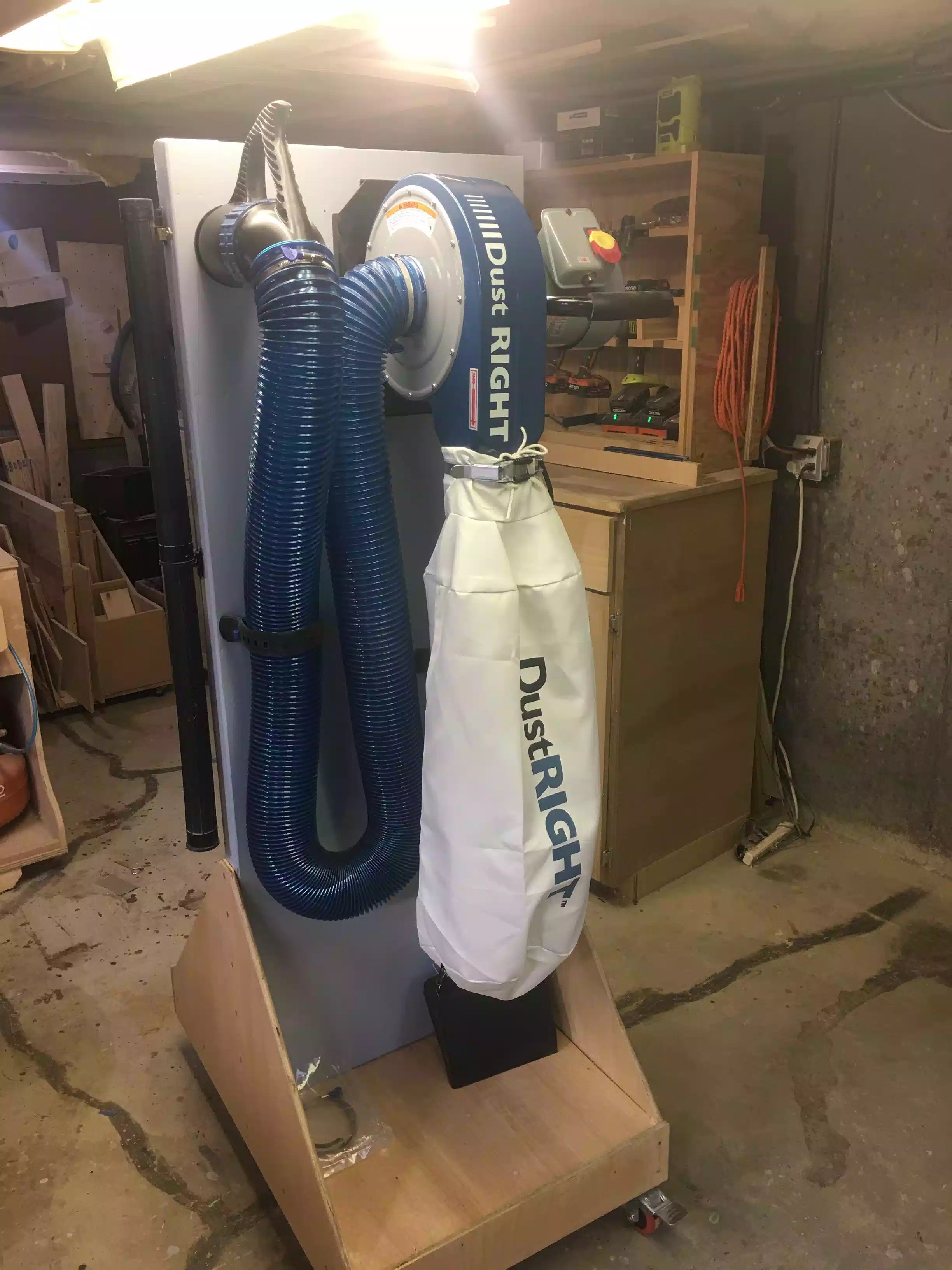

Here is all the mounting hardware attached, I actually moved one of the straps on the bottom left to the bottom right to hold my floor sweep that I also purchased.

Here is all the mounting hardware attached, I actually moved one of the straps on the bottom left to the bottom right to hold my floor sweep that I also purchased.

FILLED THE BASE GAP

Since the base is basically a plywood sandwich with 2” x 4” ‘s in the middle it created a 3-1/2” gap so I decided to cover it up, so I cut 2 pieces of plywood to size ans secured it with screws into the lumber. Below you can see before and after pics.

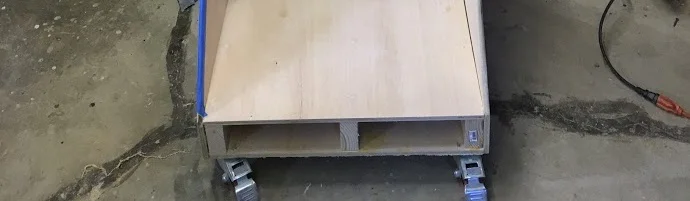

Here is the gap I am referring to before covering it.

Here is the gap I am referring to before covering it.

Here is the gap covered up with the plywood panel. Looks a little better and will prevent dust from getting inside the base.

Here is the gap covered up with the plywood panel. Looks a little better and will prevent dust from getting inside the base.

ALL FINISHED

This will probably one of them on going projects as I build my dust collection accessories but as of right now that is all I have to install on the cart, possibly in the future I might add a small 2” dust hose real and probably a dust separator.

I am very happy about how the cart came out and it works great, I used it for the first time today and world awesome I might need a longer hose other than the 14’ hose I am currently using to reach my entire shop but that is why I made the cart, as it follows me through-out the shop.

I have plans available in my store soon and I will include a link below

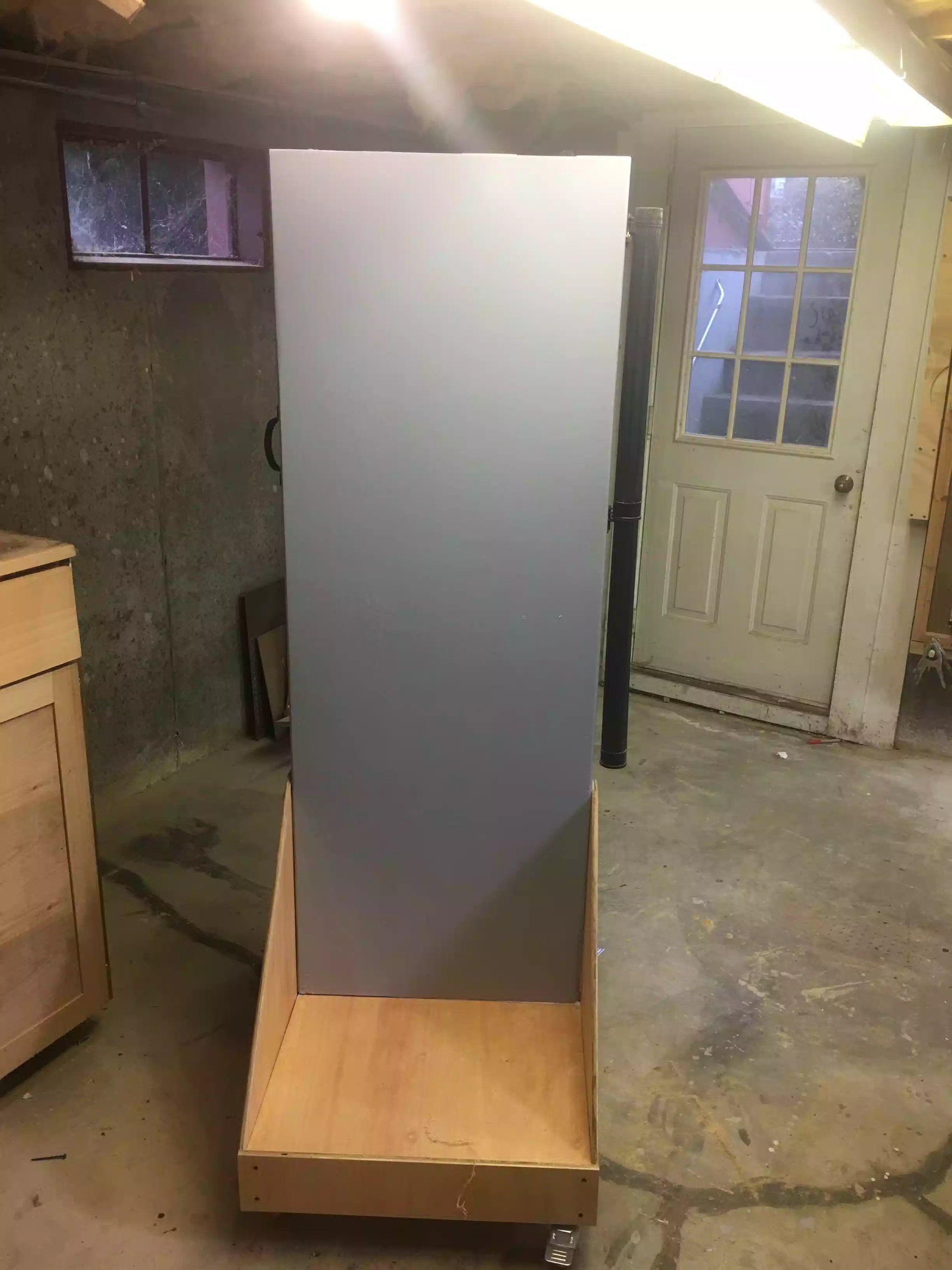

This side of the cart is empty for now but I will probably add a hose real and a dust separator

This side of the cart is empty for now but I will probably add a hose real and a dust separator

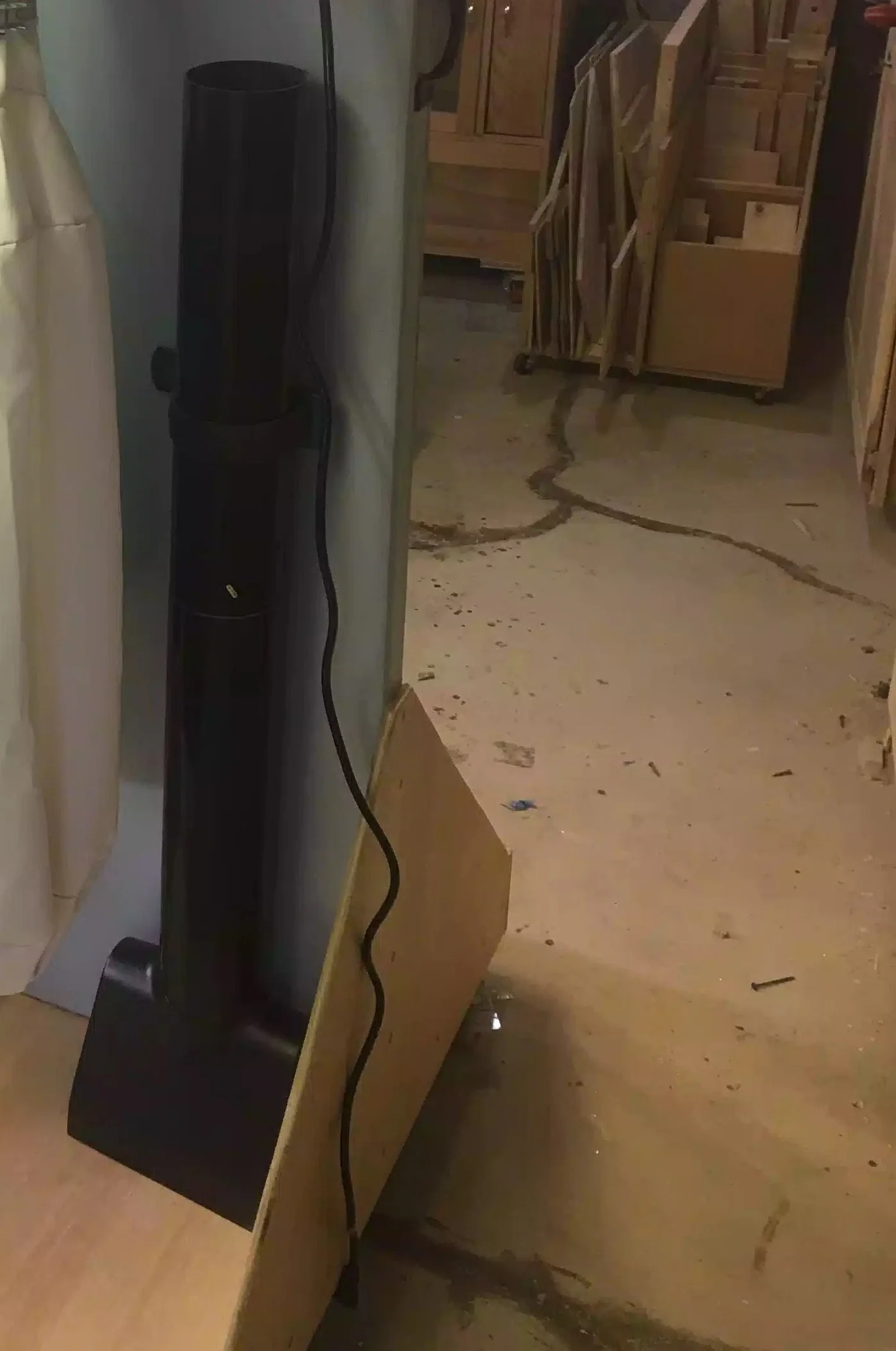

Here is a picture of the floor sweep, this works great and is ideal for cleaning up the shop floor, I actually used one of the dust hose straps to attach it to the divider of the cart , that way it will not fall when the cart is mobile.

Here is a picture of the floor sweep, this works great and is ideal for cleaning up the shop floor, I actually used one of the dust hose straps to attach it to the divider of the cart , that way it will not fall when the cart is mobile.

Here is the dust collector in its new home, it looks great and is extremely versatile allowing me to clean my entire shop and also will eventually be hooked up to all my station power tools to get rid of the saw dust.

Here is the dust collector in its new home, it looks great and is extremely versatile allowing me to clean my entire shop and also will eventually be hooked up to all my station power tools to get rid of the saw dust.

Just another angle of the cart, I really like the docking cup that holds the handle in place and Rockler will did a great job inventing the dust hose organizer.

Just another angle of the cart, I really like the docking cup that holds the handle in place and Rockler will did a great job inventing the dust hose organizer.

Thank you for reading this blog series and Ill talk to you again soon.

Take Care
